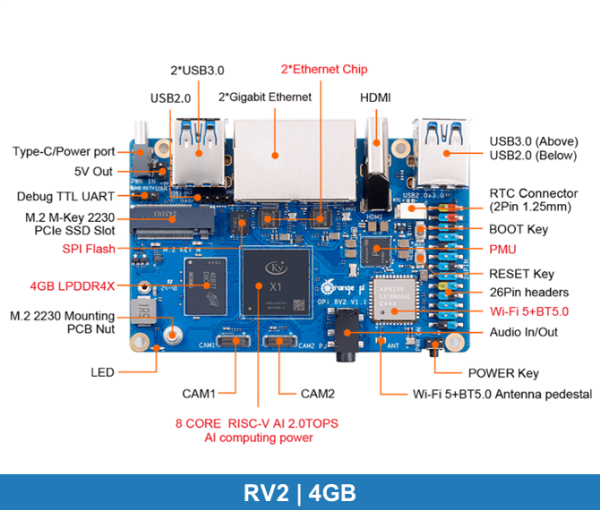

OrangePi RV2 | 4GB

CPU

Ky X1 8-core RISC-V AI CPU
2TOPS AI power

Memory

LPDDR4X: 2GB/ 4GB /8GB optional

Storage

eMMC module (optional): 16GB/32GB/64GB/128GB optional
SPI FLASH: 128Mb (default), 256Mb optional
2*M.2 M-Key SOCKET: PCIe2.0 2 Lane NVMe SSD
TF Card: Supports SDIO3.0 TF Card

Wi-Fi + Bluetooth

Wi-Fi + Bluetooth 2-in-1 Module: AP6256
Wi-Fi5.0+BT 5.0, BLE

Ethernet interface

2* Gigabit Ethernet, PHY Chip: YT8531C-CA

Display

Supports dual-screen heterodyne display, up to 1920*1440@60fPS
1* HDMI2.0
1* 4-lane MIPI DSI

Camera

2x 4-lane MIPI CSI camera interface

USB

1*USB2.0 HOST or DEVICE
3*USB3.0 HOST
1*USB2.0 HOST (4Pin header)

Audio

3.5mm headphone jack audio input/output
HDMI audio output

Buttons

1* BOOT, 1*RESET, 1 *PWR ON

RTC

2Pin spare battery connector (Pitch=1.25mm)

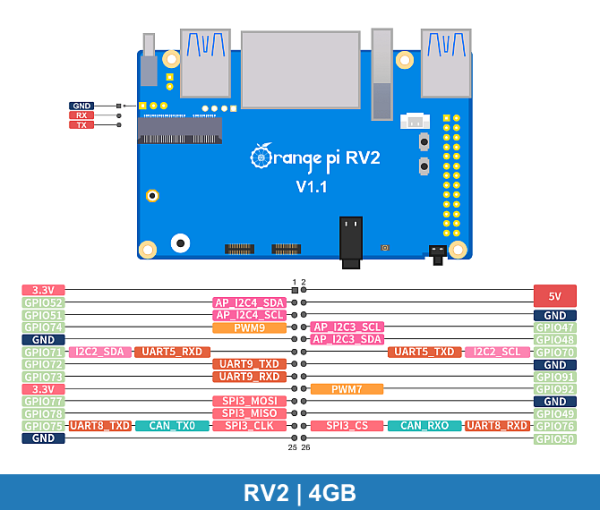

26Pin

26Pin function expansion interface, supports the following interface types:
GPIO, UART, I2C, SPI, PWM, etc.

DEBUG

3Pin debug serial port, 3.3V level

Power input/output

Power connector: 2Pin. Maximum 5V 1A output , such as connecting the fan.

Power supply

Type-C 5V 5A DC IN

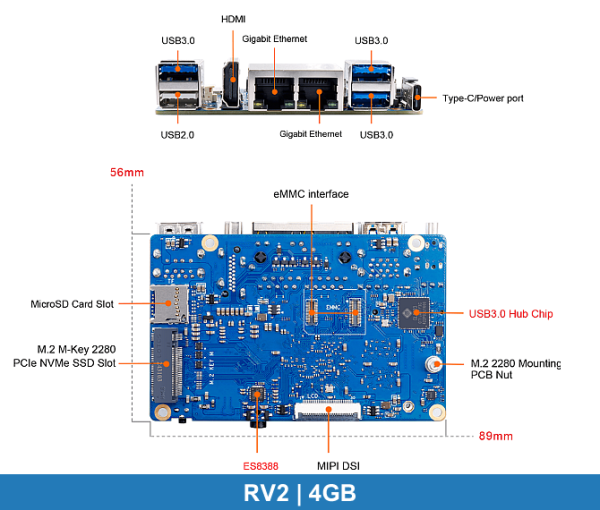

PCB size

89*56*1.6 mm

Supported OS

Ubuntu24.04
