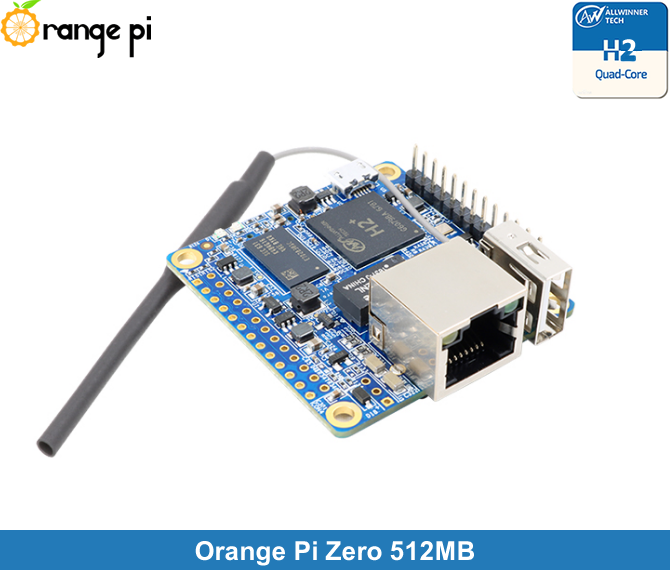

Orange Pi Zero 512 MB (H2 cpu)

CPU

• H2 Quad-core Cortex-A7 H.265/HEVC 1080P.

GPU

• Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0

Memory (SDRAM)

256MB/512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version)

Onboard Storage

TF card (Max. 32GB)/ 2MB Spi Flash

Onboard Network

10/100M Ethernet RJ45 POE is default off.

Onboard WiFi

XR819, IEEE 802.11 b/g/n

Audio Input

MIC(via 13 pins external board )

Video Outputs

AV OUT(via 13 pins external board)

Power Source

USB OTG can supply power

USB 2.0 Ports

Only One USB 2.0 HOST, one USB 2.0 OTG

Low-level peripherals

• 26 Pins Header,
• 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)

LED

Power led & Status led

Supported OS

Android, Lubuntu, Debian
