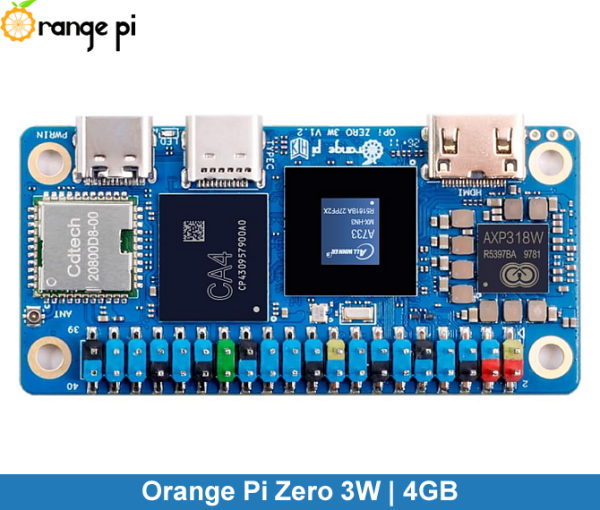

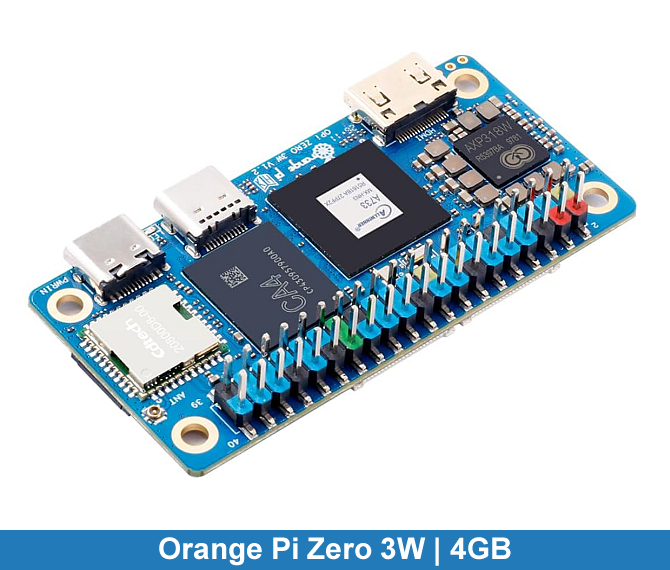

Orange Pi Zero 3W | 4GB

Category

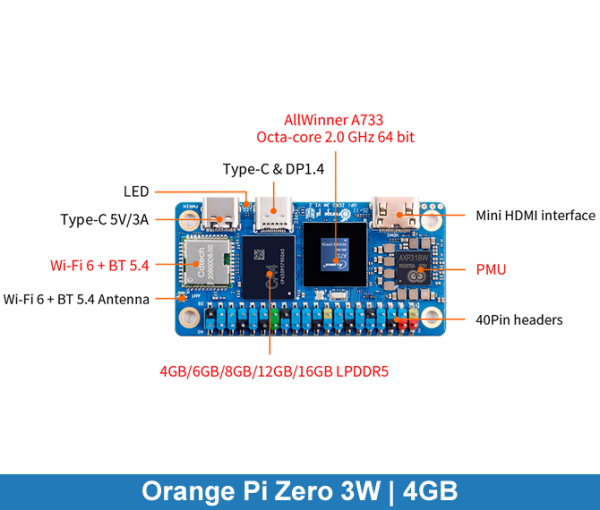

 Specification Details

SOC

 AllWinner A733

CPU

 2 x Arm Cortex-A76  (up to 2.0 GHz)
 6 x Arm Cortex-A55

GPU

 Imagination PowerVR BXM-4-64 MC1Supporting OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0

NPU

 Up to 3 TOPS @INT8, supporting mixed-precision computation with INT8, INT16, FP16, and BF16.

Coprocessor

 Xuantie E902 RISC-V Real-Time Coprocessor (up to 200 MHz).

Memory

 Onboard LPDDR5, up to 16GB.

Storage

 - Onboard eMMC (Optional 8GB/16GB/32GB/64GB/128GB) (Default empty post)
 - Onboard UFS (Optional 32GB/64GB/128GB) (Default empty post)
 - TF card slot (supports up to 128GB)

Wireless Connectivity

 Wi-Fi 6 & Bluetooth 5.4 (BLE), with support for external antennas.

Display Output

 - 1 x Mini HDMI 2.0 (up to 4K@60fps)
 - 1 x 4-lane MIPI-DSI
 - 1 x Type-C (supports DisplayPort Alt Mode，up to 4K@60fps)
 - Supports dual independent displays.

Camera

 2 x 4-lane MIPI CSI interface.

High-Speed Expansion

 1 x PCIe 3.0 1-Lane FPC socket.

Fan interface

 2PIN Fan interface

General Interface

 40PIN Functional Expansion Header,  supporting GPIO, UART, I2C, SPI, PWM.

Power Supply

 Type-C 5V/3A DCIN

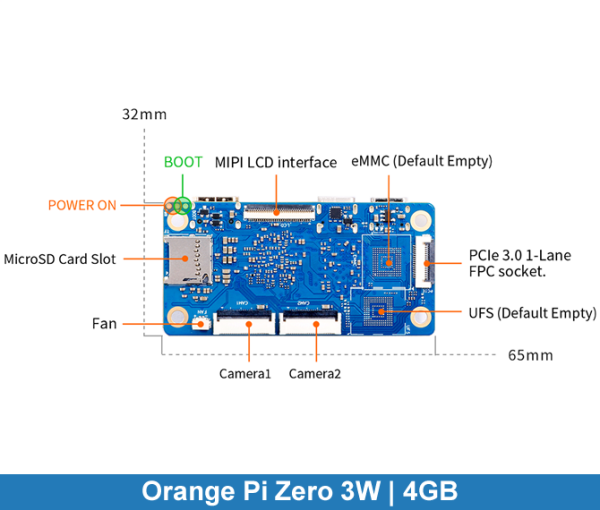

PCB Size

 65 x 32 x 1.2 mm

Weight

14g
