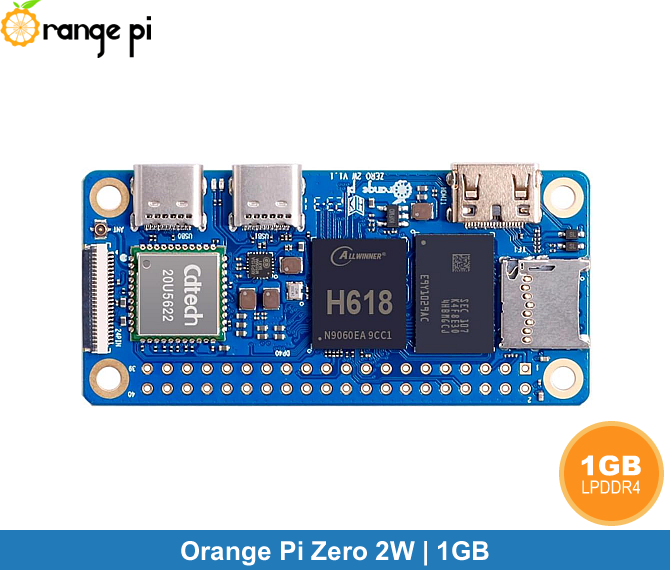

Orange Pi Zero 2W | 1GB

CPU

Allwinner H618 Quad-Core Cortex-A53 Processor 1.5GHz

GPU

Mali G31 MP2
- Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1

RAM

1GB LPDDR4

Memory

SPI Flash: 16MB

Wi-Fi + BT

Wi-Fi5.0+BT 5.0, BLE

Video output

1*Mini HDMI TX 2.0 port supporting 4K@60FPS

USB

Type-C USB2.0*2

SD card interface

1*Micro SD card interface

Expansion interface

24Pin expansion interface: USB2.0*2, 100M Ethernet interface, IR receiver interface, audio output, TV-out, power button, user-defined buttons*2

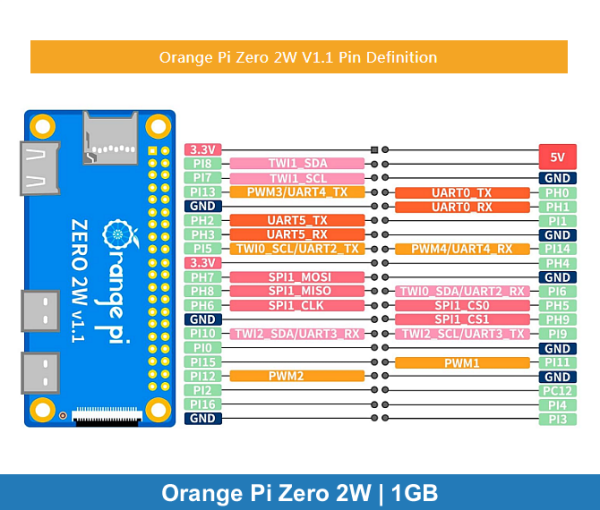

40Pin

40Pin function expansion interface, supporting the following interface types:
GPIO、UART、I2C、SPI、PWM

Power Source

Type-C 5V2A

Supported OS

Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04，Orange Pi OS（Arch）

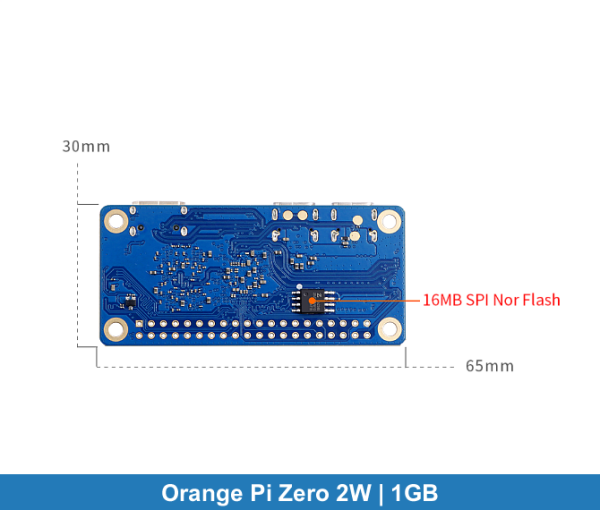

PCB Dimension

30mm x 65mm x 1.2mm

Weight

12.5g
