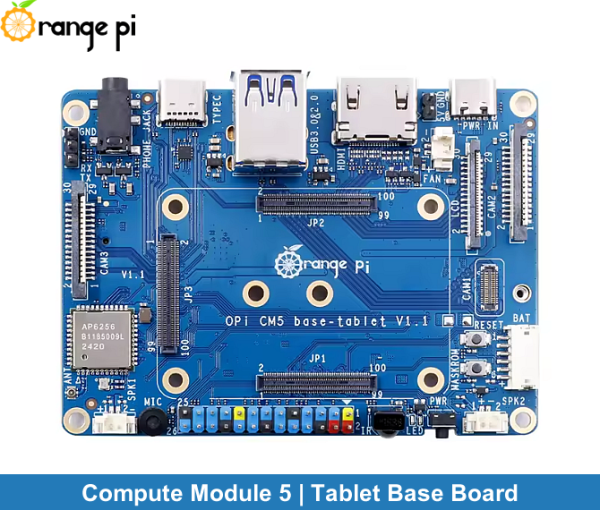

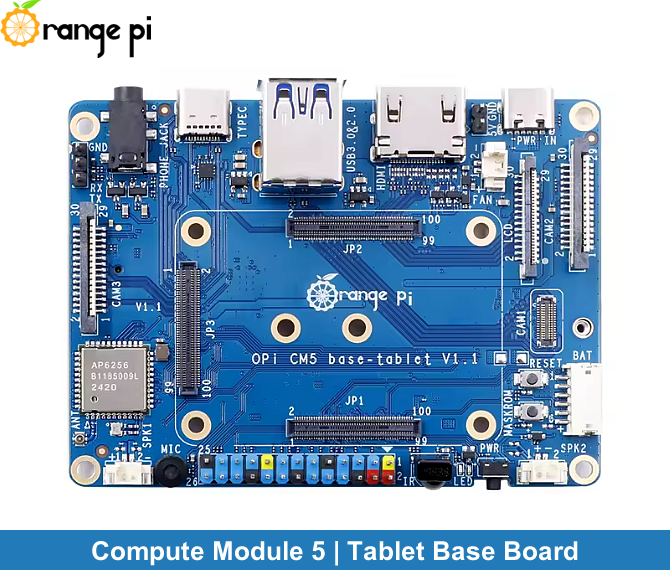

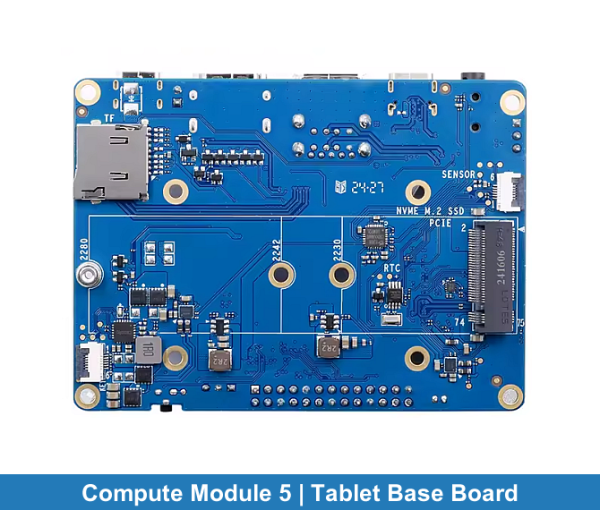

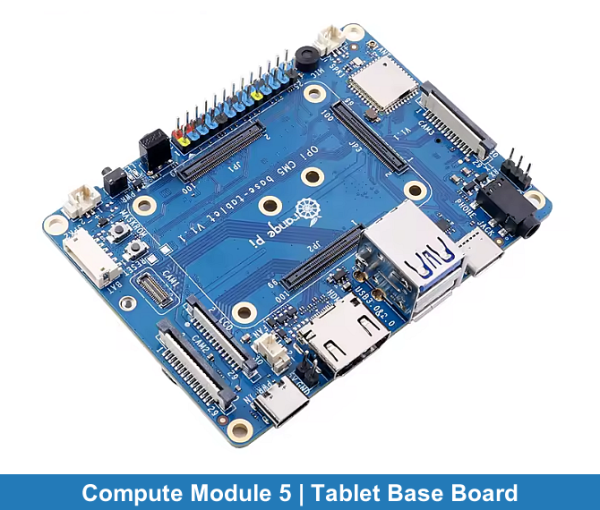

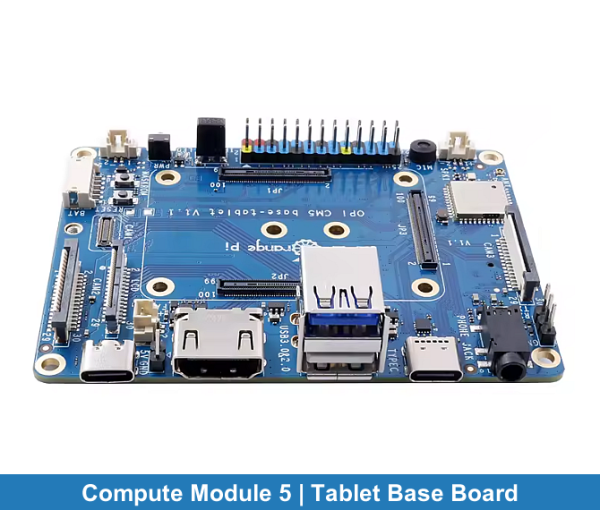

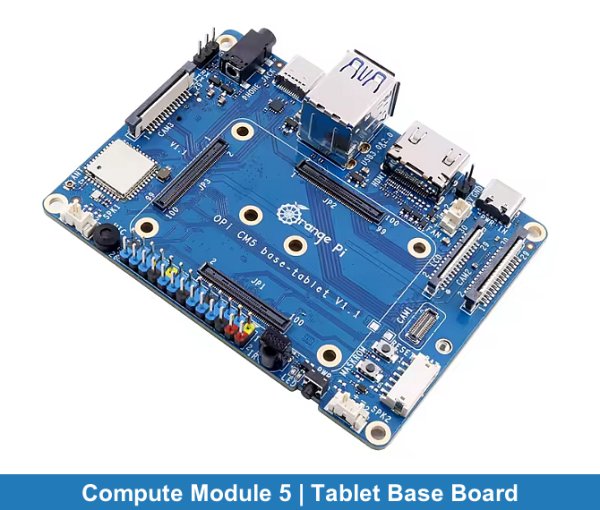

Orange Pi Compute Module 5 | Tablet Base Board

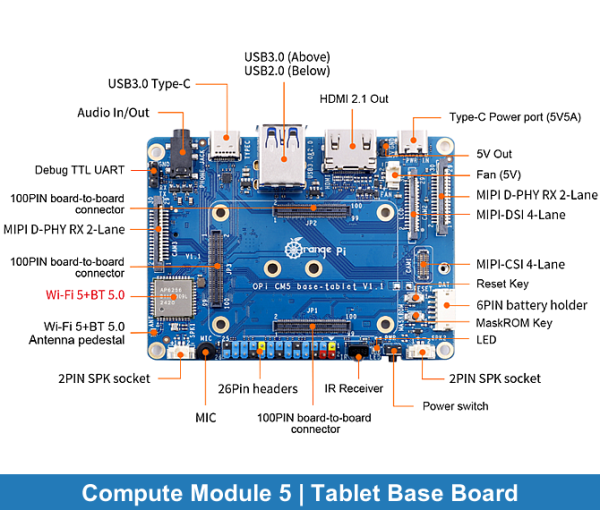

Board-to-board connector

3*100pin, 0.4mm pin pitch, connector model: df40c-100ds-0.4v

Memory

MicroSD (TF) slot
M.2 MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or SATA3.0 SSD

USB

Type-C USB3.0
USB3.0 + USB2.0

Video output

HDMI2.1, supports up to 8K @60Hz
DP1.4 ALT 4Lane (shared TYPE C connector)
MIPI DPHY TX 4 Lane

Camera

MIPI CSI 4 Lane
2*MIPI DPHY RX 2Lane

Audio

3.5mm headphone jack audio in/out
HDMI 2.1 eARC
Input: onboard MIC
Output: 2*SPK sockets, 2pin 1.25mm

Wi-Fi, BT module

Onboard Wi-Fi5+BT 5.0/BLE module:AP6256
Wi-Fi interface: SDIO3.0
BT interface: UART/PCM

Expansion port: 26pin double-row pins

Dual row pin: 2.54mm 26Pin
Support DC 5V and 3.3V power output.
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.

Button

1* MaskROM，1*RESET，1 * PWR IN

Power supply

Support Type-C power supply, 5V @ 5A

Battery Holder

Battery holder: board-to-wire connection, 6pin, 1.5mm pitch, supports single Li-ion battery charging function, charging current up to 3.78A

Button interface

6pin FPC socket, pin distance 0.5mm

Sensor interface

6pin FPC socket, pin distance 0.5mm

LED

Power indicator: red; status indicator: green

Fan

5V 2pin 1.25mm socket

SPK

2PIN 1.25mm socket

RTC

Test pad spare, can be connected to 3V spare RTC battery

Debugging

Debugging serial port UART

PCB

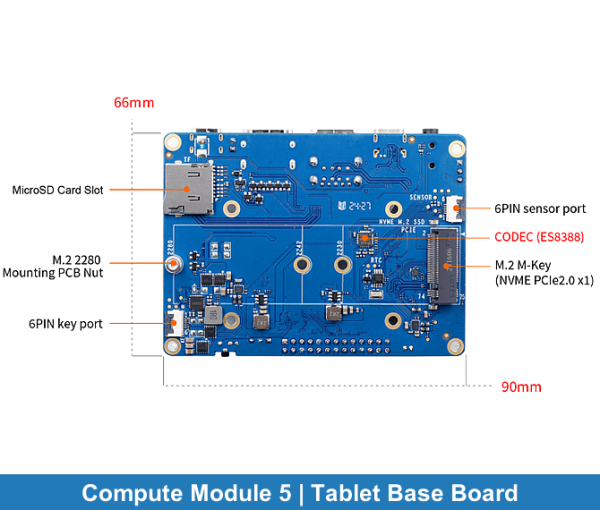

Length: 90mm, width: 66mm, thickness: 1.6mm

Weight

43g
