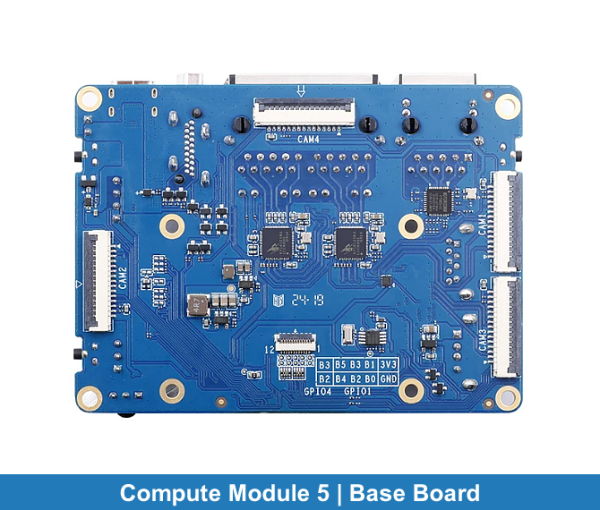

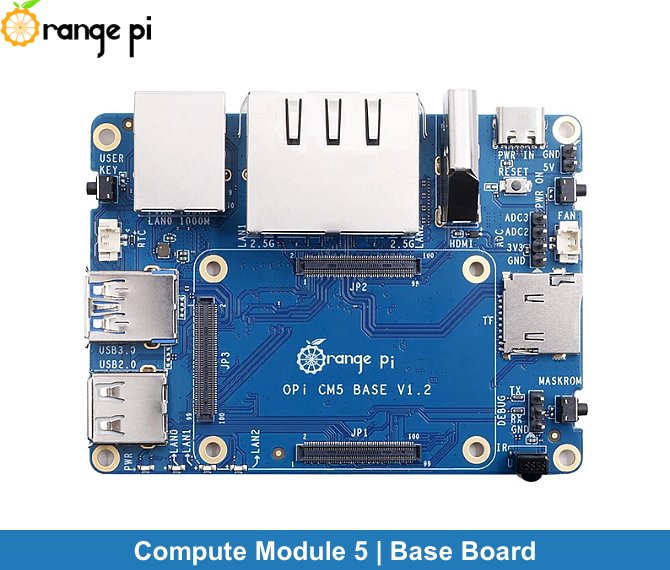

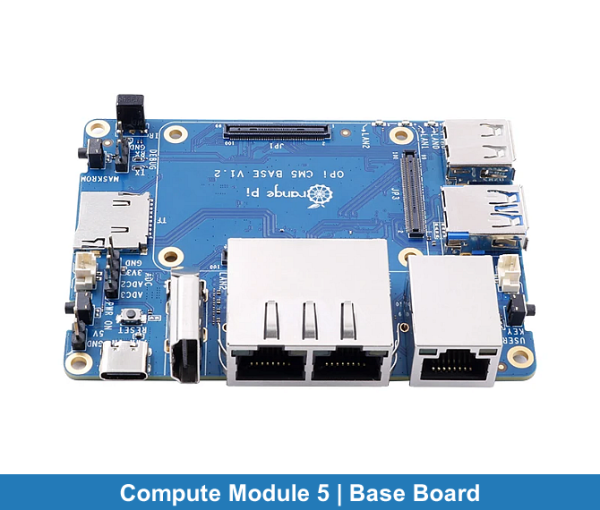

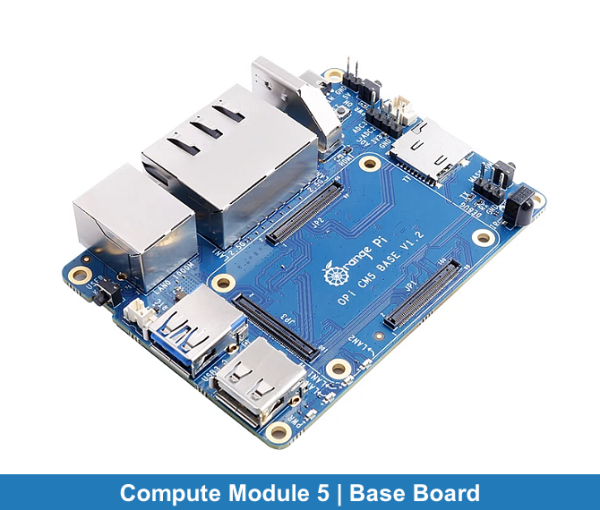

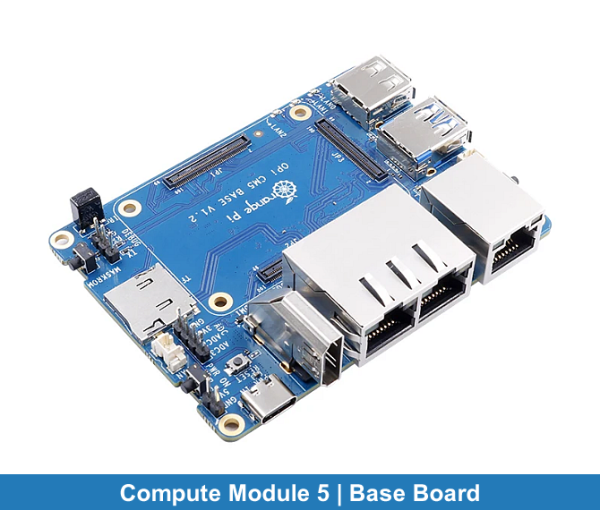

Orange Pi Compute Module 5 | Base Board

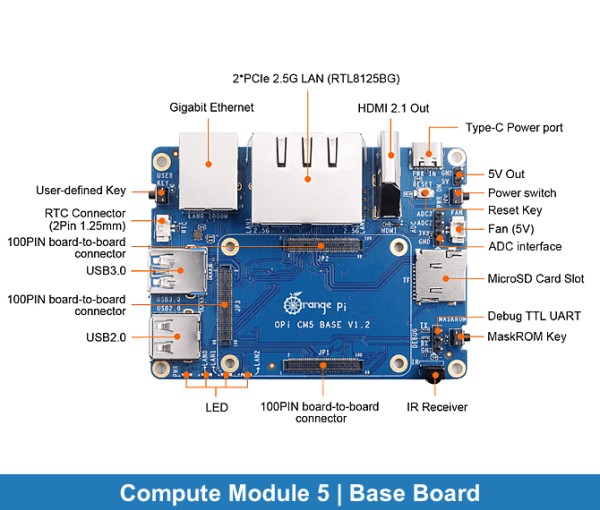

Board-to-board connector

3*100pin, 0.4mm pin Pitch, connector model: df40c-100ds-0.4v

Memory

MicroSD (TF) card

USB

• 1*USB3.0(Host or Device mode supported)
• 1*USB2.0

Video output

HDMI 2.1 with up to 8K @60Hz support

Camera

4*MIPI 2-lane

Ethernet PHY

• 1*10/100/1000M(YT8531C)
• 2*2.5G(RTL8125BG)

Infrared receiver

Remote infrared receiver

ADC

Reserved for two 12Bit ADC inputs, maximum 1.8V inputs

RTC

2pin connector with 1.25mm pitch

FAN

Connect DC 5V fan, 2pin vertical socket, Pitch:1.25mm

Expansion port

• 12pin FPC socket
• Supports 3.3V 500mA power output
• Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces

Button

Power on/off key, MASKROM key, user-defined key, reset key

Power supply

Type-C,5V @ 5A

LED

1* red (POWER), 3* green (WAN, LAN1, LAN2)

Debugging

3pin debug serial port (UART)

Supported OS

Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12

PCB

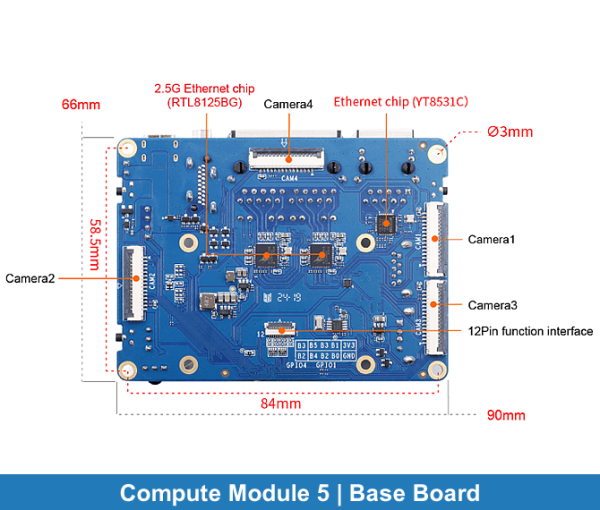

Length: 90mm, width: 66mm, thickness: 1.6mm

Weight

57.5g
