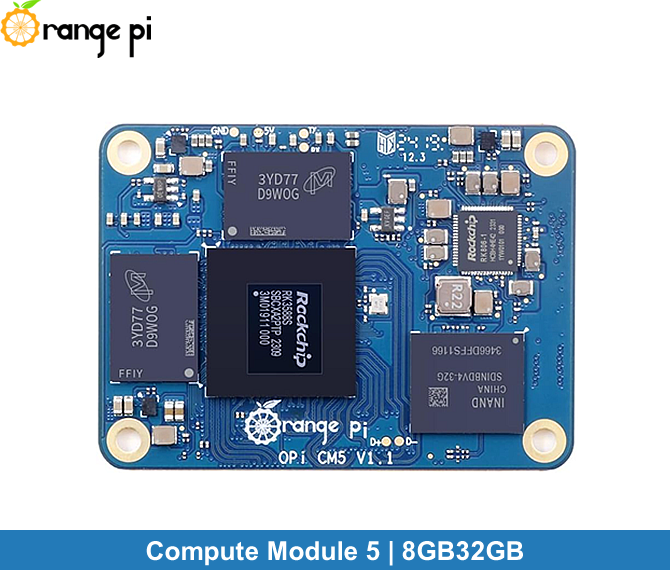

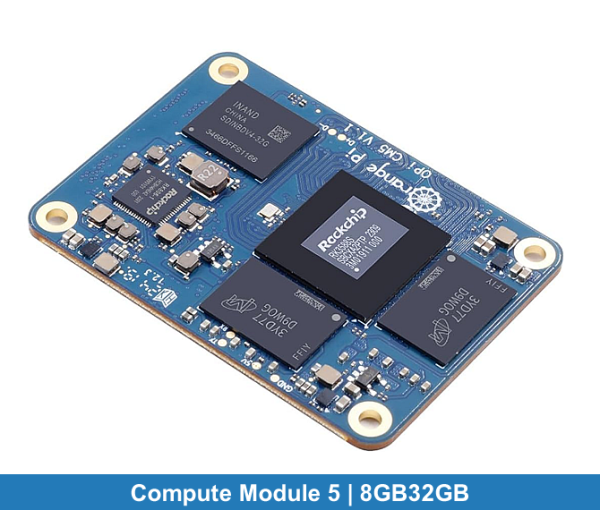

Orange Pi Compute Module 5 | 8GB-32GB

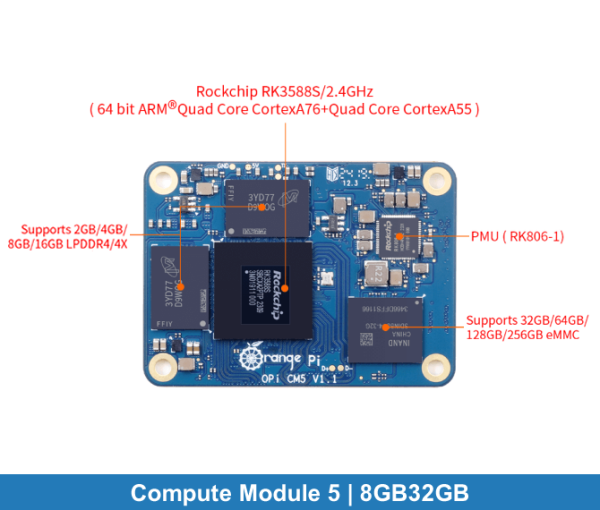

SoC

Rockchip RK3588S (8nm LP process)

CPU

• 8-core 64-bit processor
• 4-core Cortex-A76 (2.4GHz)and 4-core Cortex-A55 (1.8GHz) typical small and large core architectures

GPU

• Integrated ARM Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2

NPU

Built-in AI accelerator NPU with up to 6TOPS computing power, supporting INT4/INT8/INT16 hybrid computing.

PMU

RK806-1

RAM

LPDDR4/4x：supports 2GB、4GB、8GB、16GB

eMMC

eMMC：supports 32GB、64GB、128GB、256GB

Interface

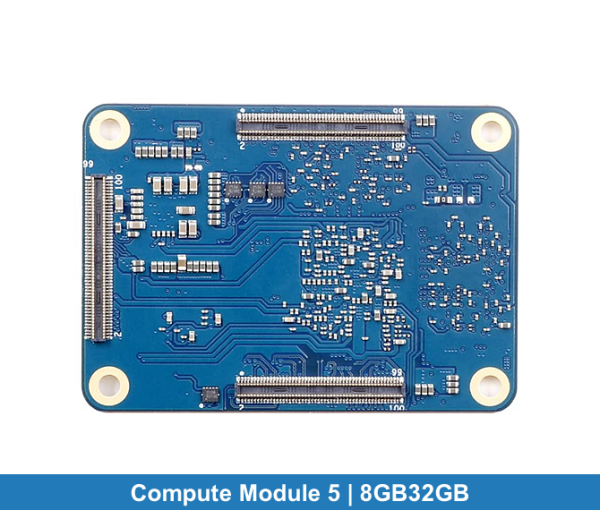

• 3*100pin (Model: DF40C-100DP-0.4V(51)), including the following interfaces:
• 1*Type C or DP1.4
• 3*USB2.0
• 1*HDMI 2.1 or eDP1.3
• 1*SDMMC
• 1*4-lane MIPI DPHY TX
• 1*2-lane MIPI DPHY TX
• 2*2-lane MIPI DPHY RX
• 1*4-lane MIPI CSI RX
• 1*SATA III or PCIe2.0
• 1*SATA III or PCIe2.0 or USB3.0
• USB3.0*1+USB2.0*3
• POWER_ON、RESET、MASKROM、RECOVERY etc.
• SDIO 3.0 or RGMII
• I2C、I2S、UART、SPI、CAN、PWM、SPDIF、PDM、GPIO etc.

Power supply

Input: DC 5V Max1800mA
Output: DC3.3V Max600mA and DC1.8V Max600mA

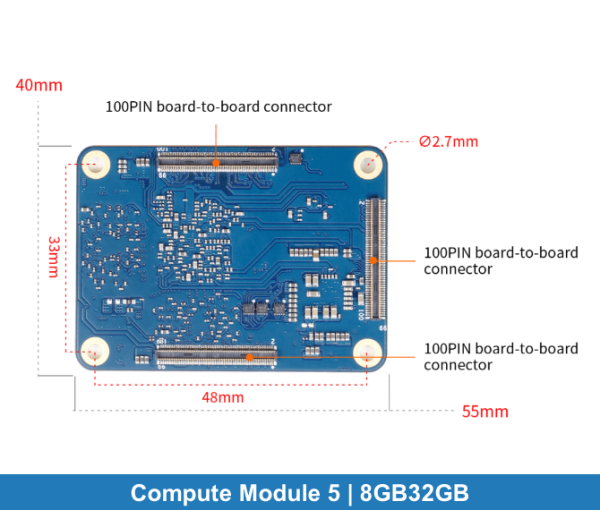

PCB

Length: 55mm, width: 40mm, thickness: 1.6mm

Weight

12g
