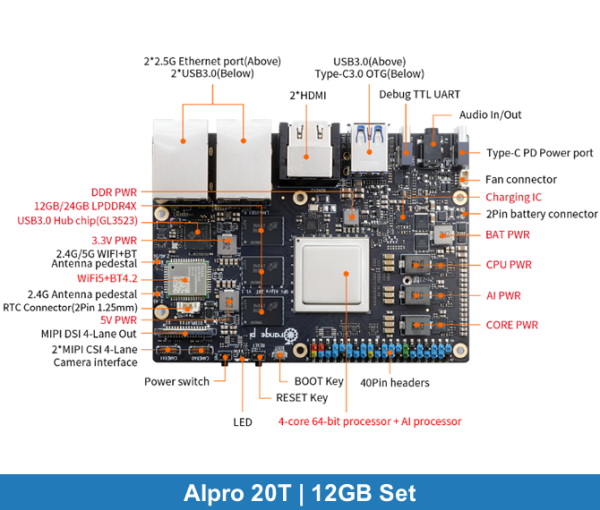

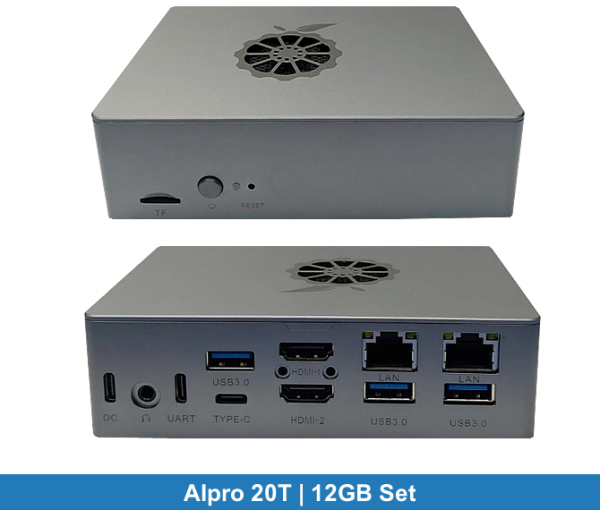

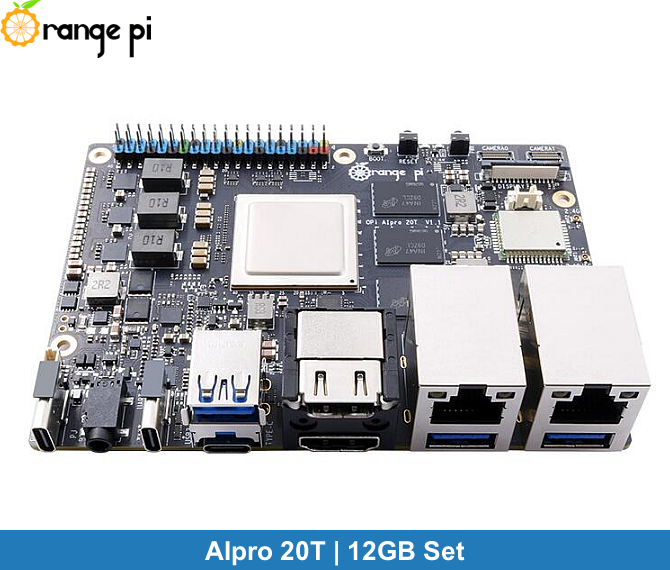

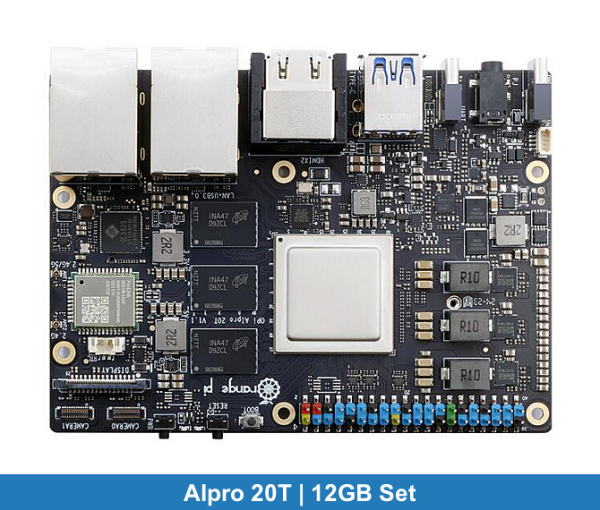

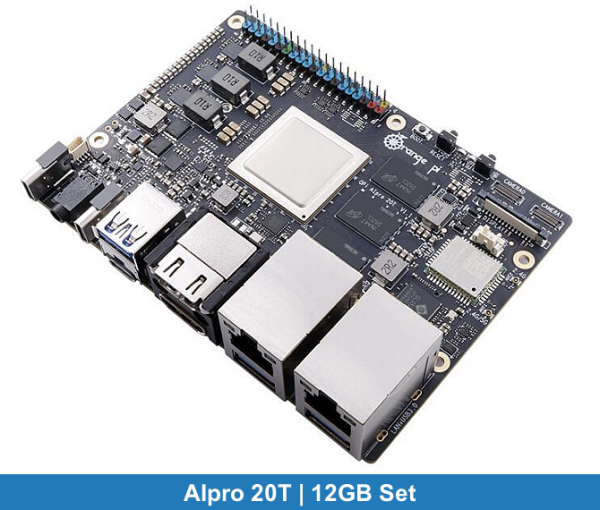

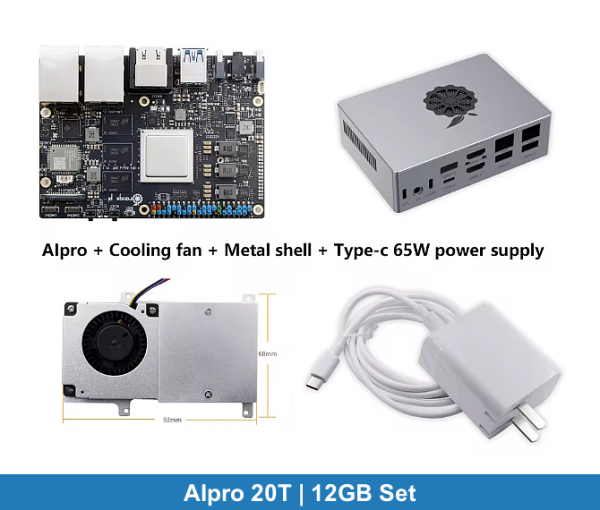

Orange Pi AIPro 20T | 12GB Set (Fan+Case+Power Supply)

CPU

4-core 64-bit processor + AI processor
1 DaVinciV300 AI core at 1.224GHz
4 TAISHANV200M processor cores at 1.6GHz

GPU

Integrated graphics processor

AI computing power

20 TOPS

RAM

LPDDR4X: 12GB / 24GB (optional), rate: 4266Mbps

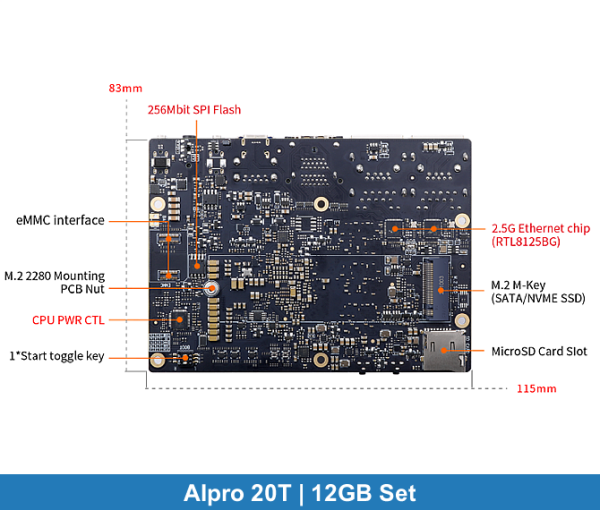

Storage

• Supports eMMC module: 32GB/64GB/256GB
• SATA/NVME SSD (M.2 interface 2280)
• SPI flash: 32MB
• MicroSD slot

Wi-Fi +Bluetooth

Wi-Fi 5 dual-band + BT 4.2, BLE

Ethernet transceiver

Dual 2.5G Ethernet

Display

• 2 * HDMI TX 2.0 outputs, support up to 4K@60FPS
• 1 * MIPI DSI 4-lane output

Camera

2 * MIPI CSI 4-lane camera interface

USB

•3 * USB 3.0 HOST
•1 * USB Type-C 3.0 HOST/Device (USB 2.0 compatible)
•1 * Type-C serial port printing function

Audio

3.5mm headphone jack audio in/out

Button

1*On key, 1*RESET key, 1*Start toggle key, 1*BOOT key

40pin

40pin function expansion interface, supporting the following interface types:
GPIO、UART、I2C、SPI、 I2S、PWM

Fan

Fan connector * 1

Reserved ports

2pin battery connector

Power supply

Type-C PD 20V IN, standard 65W

Supported OS

Ubuntu、openEuler

Product size

115.23mm*83.26mm*1.6mm

Weight

120.5g
