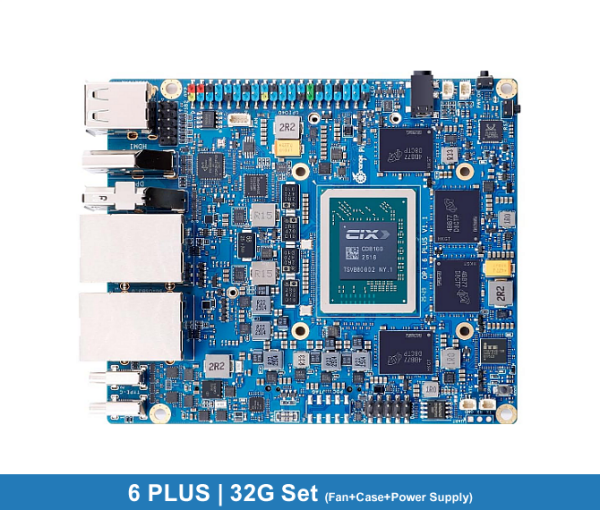

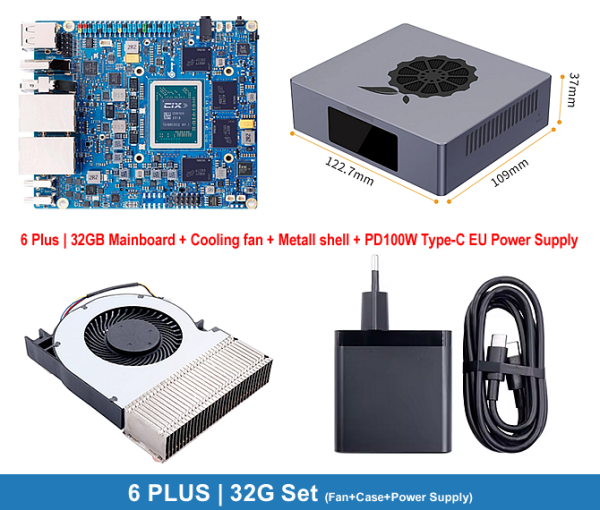

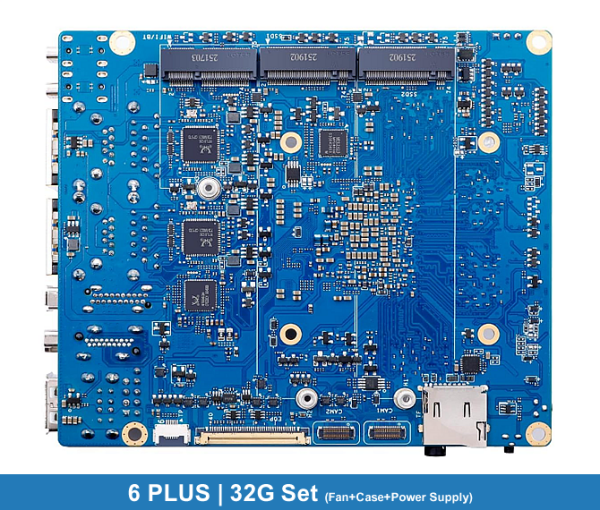

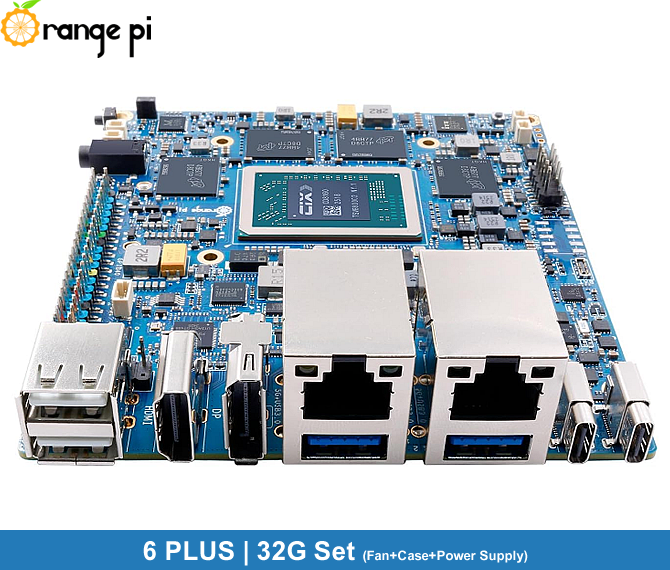

Orange Pi 6 PLUS | 32G Set (Fan+Case+Power Supply)

CPU

12-core 64-bit processor

NPU

28.8Tops

GPU

Integrated graphics processor

Combined Computing Power

45TOPS（CPU+NPU+GPU）

RAM

32GB LPDDR5: 128-bit x 32;16GB/32GB /64GB

Storage Expansion

• SPI FLASH: 64Mbit
• NVME SSD (PCIe 4 lane，M.2 KEY-M interface 2280) *2
• TF slot

Wi-Fi Module

M.2 KEY-E socket

PCIE Ethernet

5G Ethernet*2

USB

• USB 3.0 HOST *2
• USB2.0*2
• Reserved USB 2.0 9-pin socket
• USB full-function Type-C 3.0 HOST*2

Camera Interface

2*4-lane MIPI CSI camera interface

Display Interface

• 1*DP1.4 4K@120HZ
• 2*TYPE-C DP
• 1*HDMI1.4 4K@60HZ
• 1*eDP 4K@60HZ

Audio

3.5mm headphone jack audio input/output, speakers*2, analog MIC*1

TYPE-C Port Power Supply

Type-C PD 20V IN*2, standard 100W

Expansion Interface

40-pin function expansion interface, supporting the following interface types:
GPIO, UART, I2C, SPI, PWM

Indicator Light

Power-on indicator, system indicator, battery charging indicator

Button

1* Power button, 1* BOOT button, 1* RESET button

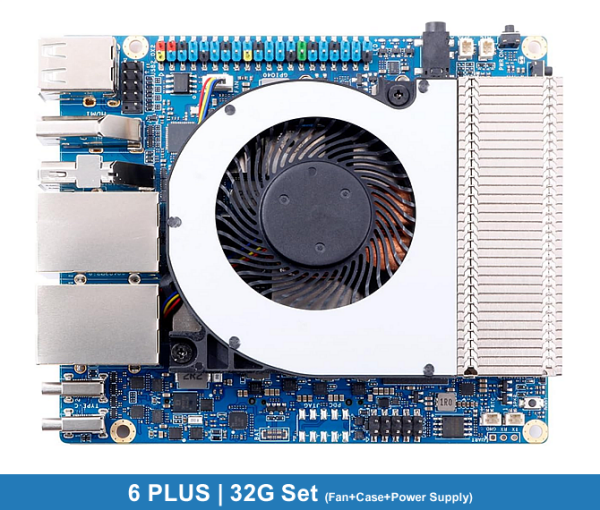

Fan Interface

1* Fan connector with PWM control

Reserved Interface

Board-to-board battery connector; 2-pin RTC connector

Power Adapter

Type-C PD 20V input, standard 100W

Operating System

Debian, Ubuntu, Android, Windows, ROS2

Appearance Dimensions

115*100mm

Weight

132g
