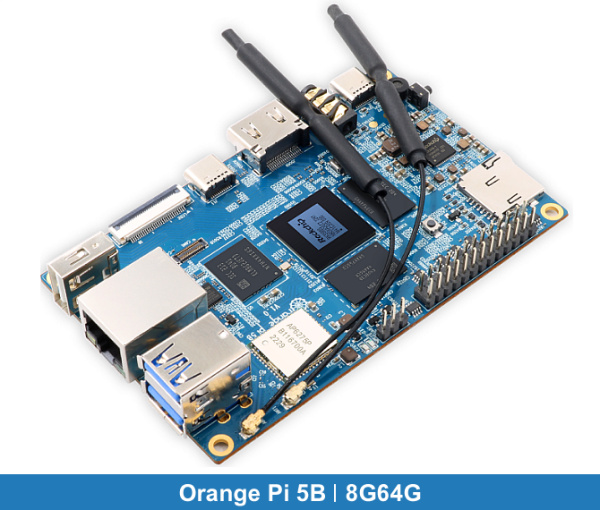

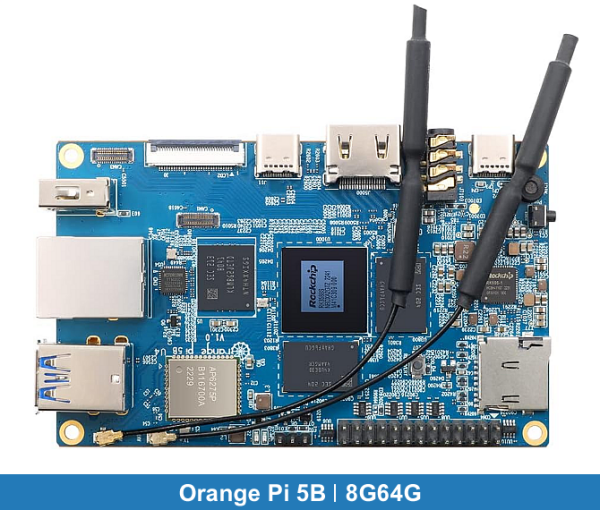

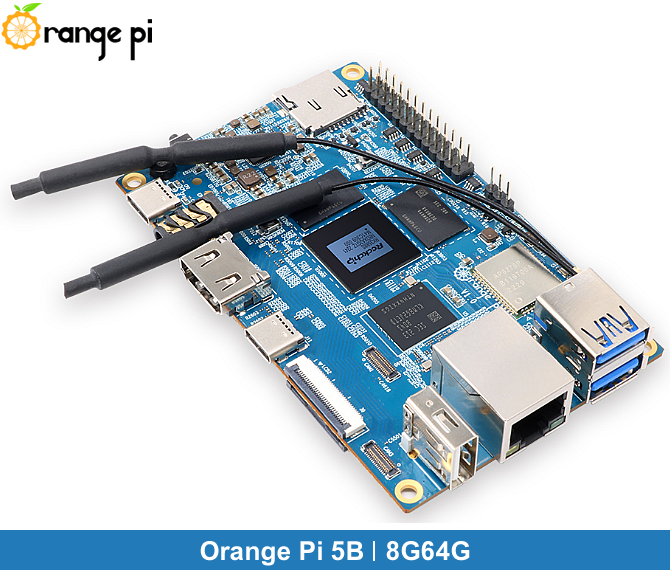

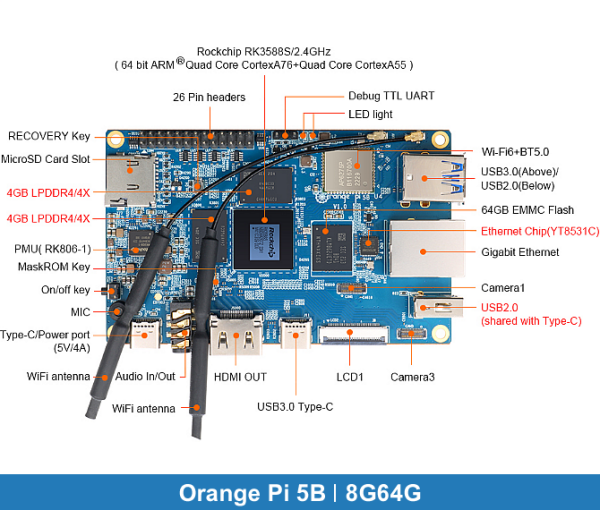

Orange Pi 5B | 8G64G

SoC

 Rockchip RK3588S (8nm LP process)

CPU

 • 8-core 64-bit processor
 • Big.Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.

GPU

 • Arm Mali-G610 MP4
 • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
 • 3D graphics engine and 2D graphics engine

NPU

 Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation

PMU

 RK806-1

RAM

 8GB（LPDDR4/4x）

Memory

 • 64GB eMMC
 • MicroSD (TF) Card Slot

USB

 USB3.1 * 1
 USB2.0 * 2
 Type-C (USB3.1) * 1

Video Output

 • HDMI2.1, up to 8K@60Hz
 • DP1.4 (DisplayPort), maximum output resolution up to 8K@30Hz
 • 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz

Camera

 • MIPI CSI 4Lane
 • 2 * MIPI D-PHY RX 4Lane

Audio

 CODEC: ES8388
 • 3.5mm headphone jack audio input/output
 • Input: Onboard MIC
 • HDMI 2.1 eARC

Ethernet

 10/100/1000Mbps Ethernet

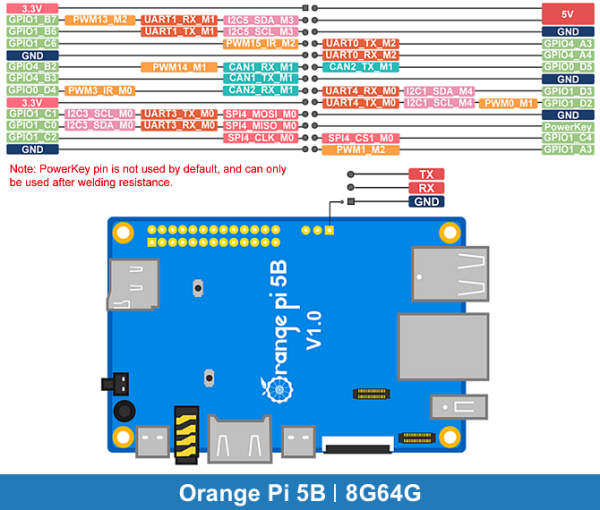

Expansion Port

 For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces

Wi-Fi, BT module

 On-board Wi-Fi6+BT 5.0 module, Wi-Fi6 interface: PCIe, BT interface: PCM+UART

Button

 1 * MaskROM key
 1 * Recovery key
 1 * On/Off key

Power Source

 Support Type-C power supply, 5V@4A

LED

 Power indicator: red
 Status indicator: green

Debugging

 3 Pin debug serial port (UART)

Supported OS

 Orangepi OS（Droid）、Orangepi OS（Arch）、Debian11、Ubuntu22.04、Ubuntu20.04、Android12

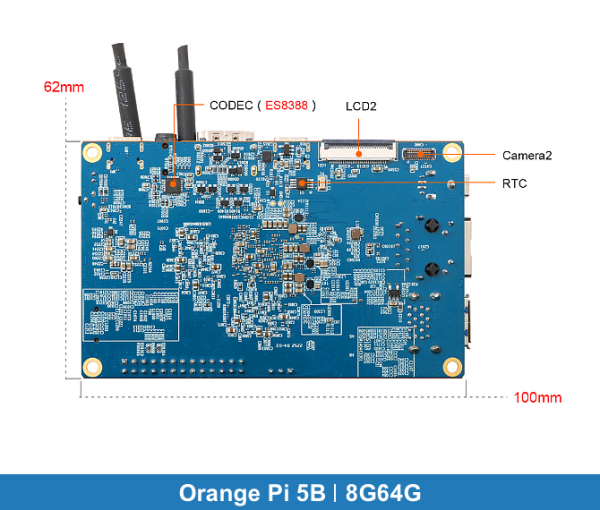

Dimension

 62mm * 100mm

Weight

 52g
