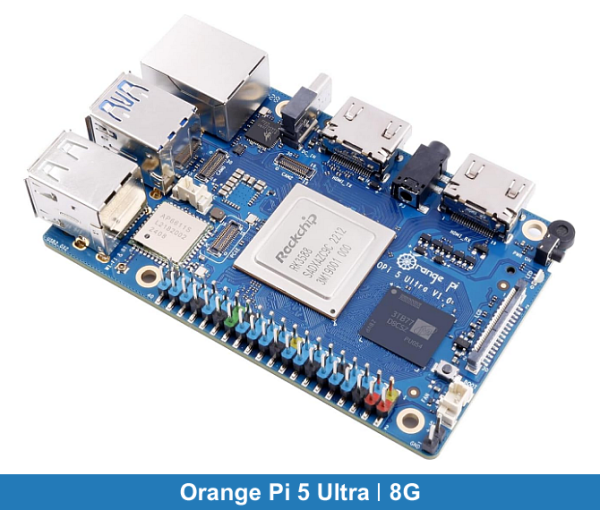

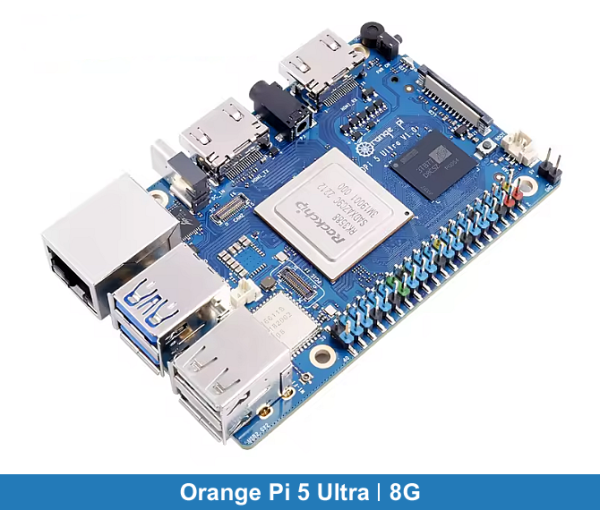

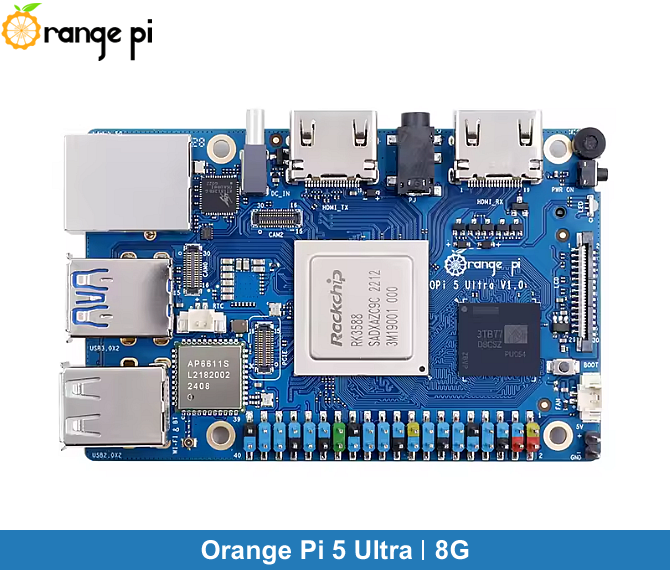

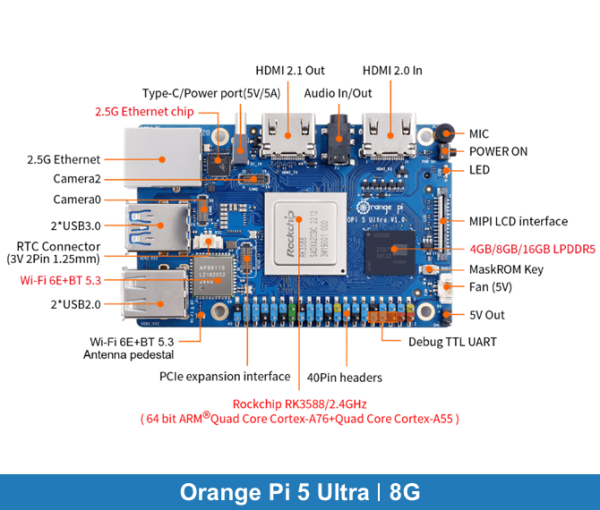

Orange Pi 5 Ultra | 8GB

Master Chip

Rockchip RK3588 (8nm LP process)

CPU

• 8-core 64-bit processor
• 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor
• Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz

GPU

• Integrated ARM Mali-G610
• Built-in 3D GPU
• Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.

NPU

Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.

PMU

RK806-1

RAM

LPDDR5 496PIN：4GB、8GB、16GB optional

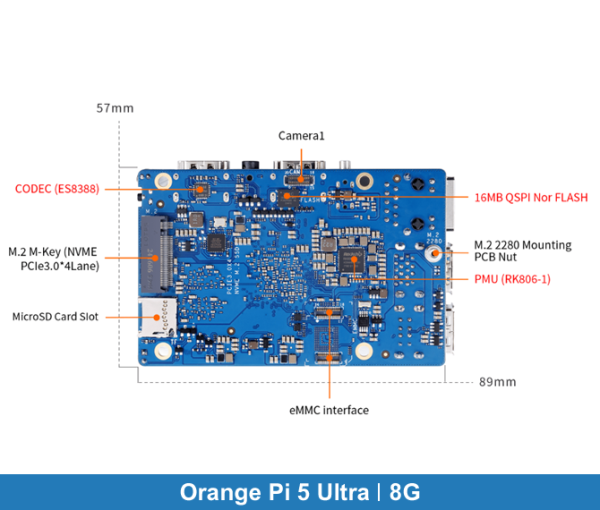

Memory

• eMMC flash socket
• eMMC IC
  Note: Either eMMC flash socket or eMMC IC, support: 32GB, 64GB, 128GB, 256GB optional
• QSPI nor flash: 16MB
• MicroSD card slot
• M.2 M-KEY slot: support NVMe SSD (PCIe 3.0 4Lane)

USB

2*USB3.0；2*USB2.0；

Video

• 1* HDMI 2.1 out up to 8k@60FPS
• 1* HDMI 2.0 in up to 4k@60FPS
• 1* MIPI DSI TX 4 Lane

Camera

• 2* MIPI CSI 4 Lane
• 1* MIPI D-PHY RX 4 Lane

Audio

CODEC：ES8388
• 1* Audio 3.5mm jack with mic
• 1*MIC In
• 1*HDMI 2.1 eARC

Ethernet

1*PCIe 2.5G LAN（RTL8125BG )

Wi-Fi+BT Module

Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611
Wi-Fi interface: SDIO3.0
BT interface: UART/PCM

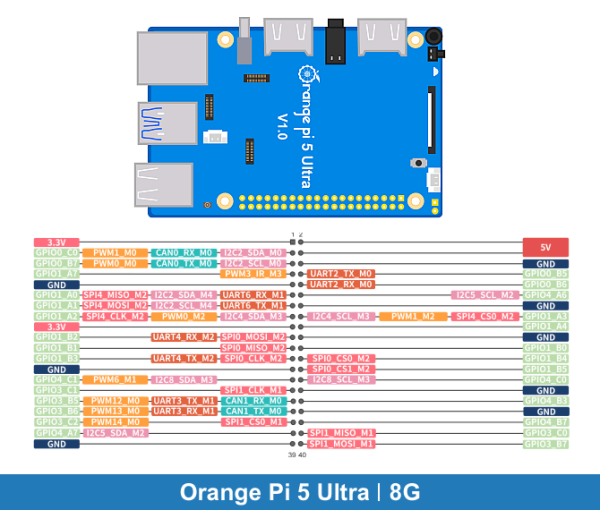

Expansion Port

Dual-row pin: 2.54mm 40Pin
Supports DC 5V and 3.3V power output
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.

Button

1* MaskRom key, 1 * On/Off key

Power Source

Supports Type-C power supply, 5V @ 5A

LED

RGB LED side Illumination

FAN

5V 2PIN 1.25mm socket

RTC

3V 2PIN 1.25mm socket

Debugging

Debug serial UART included in 40PIN expansion port

Supported OS

Orangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android13

PCB

Length: 89mm, width: 57mm, thickness: 1.6mm

Weight

60.5g
