MW1010N Intel N100 4GB RAM 128GB SSD 2*Gigabit Ethernet WI-FI Freedos Mini PC
|
Basic Information |
|
|
CPU |
Intel® Alder Lake 7nm 12th Gen N100 4 Cores 4 threads max 3.4GHz TDP 6W Cache 6MB |
|
TDP |
6W |
|
Motherboard Size |
120 x 120 mm customized size |
|
BIOS |
American Megatrends Inc |
|
Chipset |
Elkhart Lake |
|

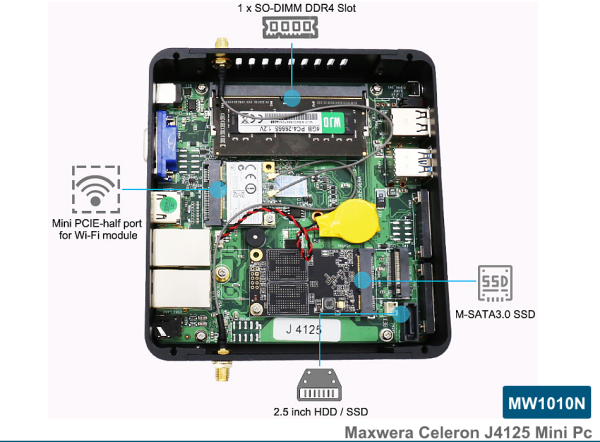

Memory Specifications |
|
|
Memory Types |
4GB DDR4 2666Mhz Ram | 1* SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB |
|
Memory Channels |
Single Channels |
|
OS |
Windows 10/Windows 11/Linux |
|
PXE |
YES |
|
Audio |
Intel High Definition Audio Controller |
|
Network |
2 x Realtek 811H Gigabit Ethernet Controller | 10/100Mbps/1000Mbps BaseT LAN |
|
Processor Graphics |
Intel® UHD Graphics |
|
Wi-Fi: |
|
|
Module |
1 x M.2 2230 slot for Wi-Fi & Bluetooth module |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|

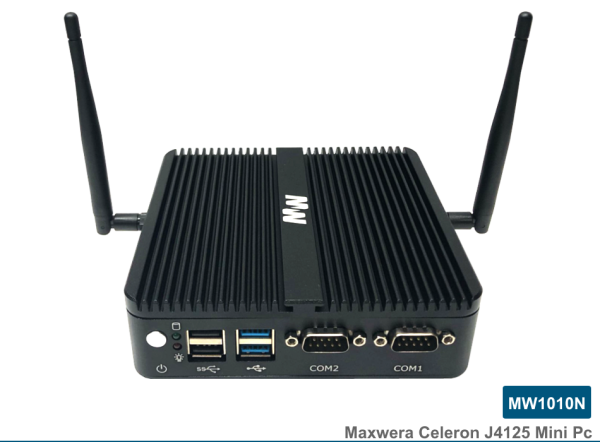

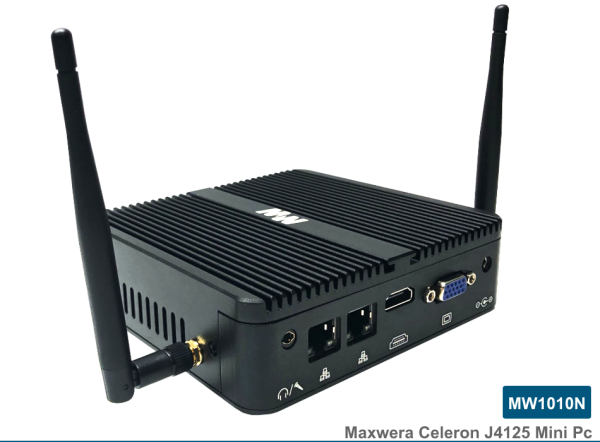

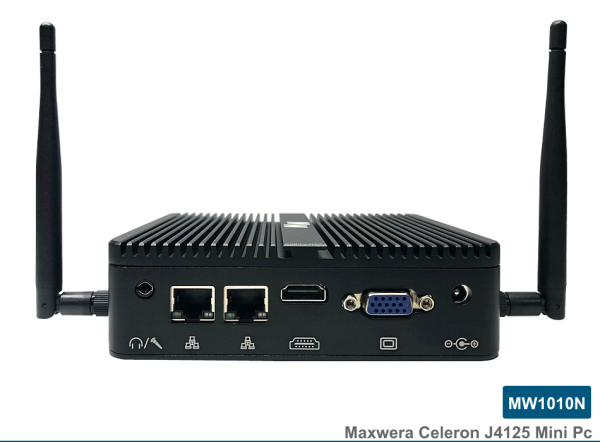

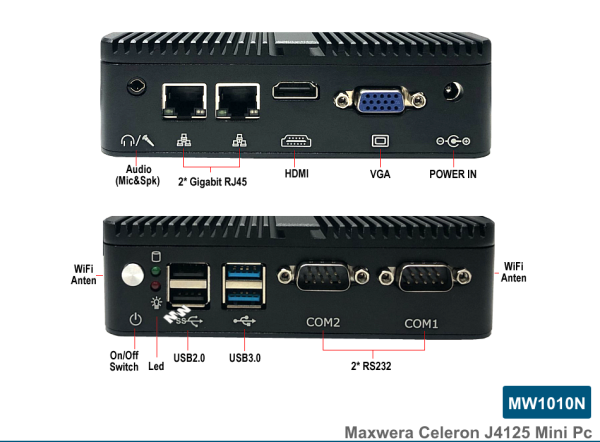

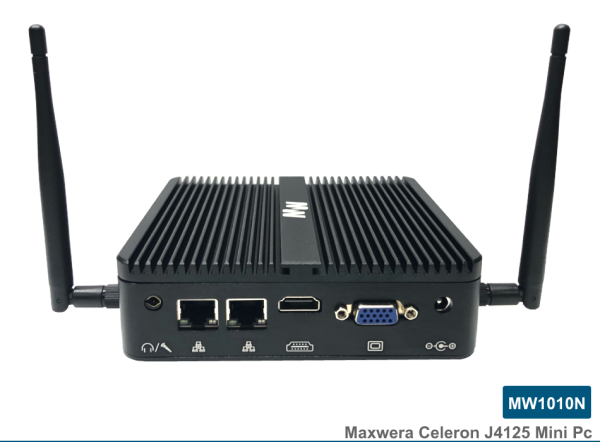

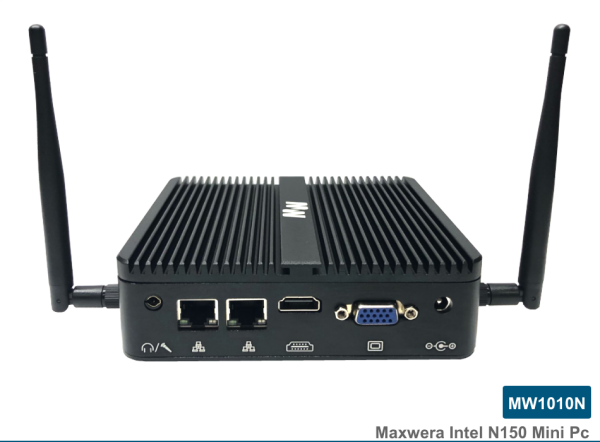

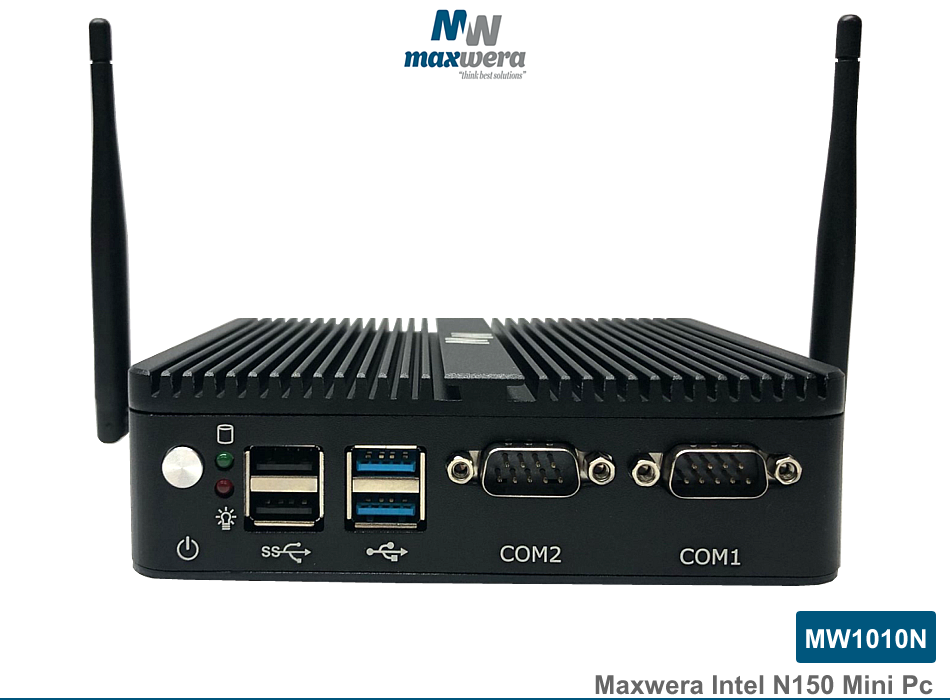

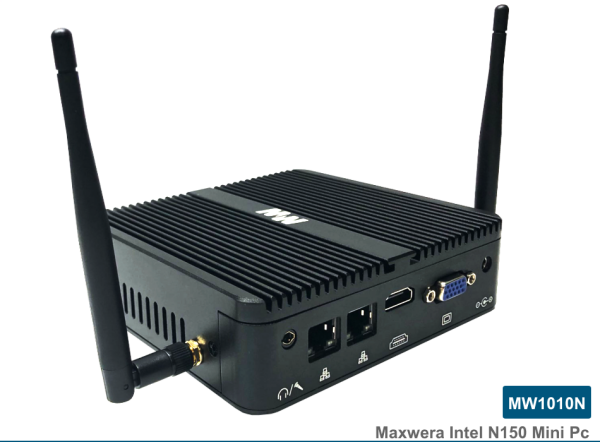

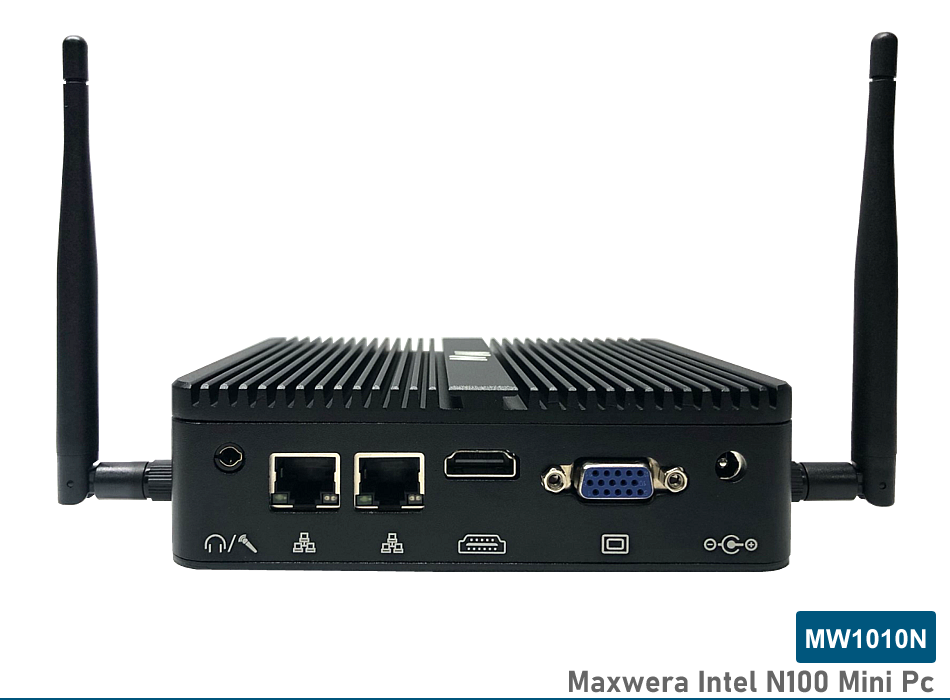

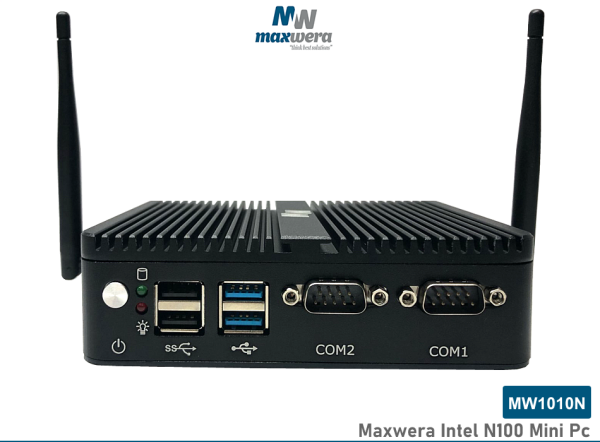

Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 12V DC In |
|
LED |
2 x LED |
|
USB |
2 x USB3.0 , 2 x USB2.0 |
|
Display |
1 x VGA, 1 x HDMI 1.4 |
|
LAN |
2x RJ45 Gigabit LAN |
|
COM |
2 x DB9 RS232 COM |
|
Audio |
1 x MIC, 1 x SPK |
|

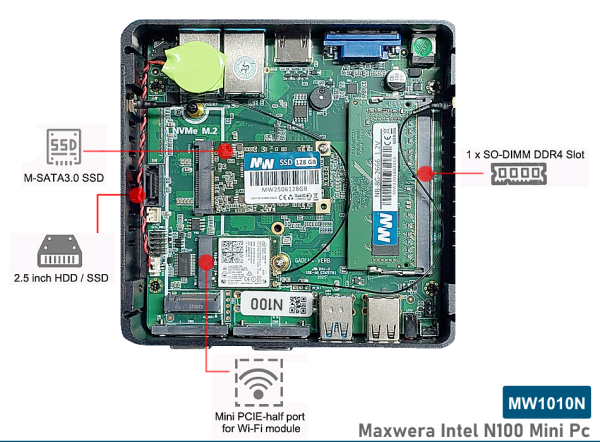

Storage |
|
|
MSATA, SATA |
128GB mSATA Disk | 1 x M-SATA3.0 slot for MSATA SSD, 1 x SATA3.0 slot for SATA HDD or SSD |
|
m.2 |
1 x M.2 slot for NVME 2280 SSD |
|
Product Dimension & Details: |
|
|
Case Material |
Black aluminum alloy |
|
Dimension |
PC size 135*127*38.7mm |
|
Package size 320*220*85mm |
|
|
Weight |
Net 0.80kg, Gross 1.2kg |
|
Functions |
Watchdog, Auto power on, Wake-On-LAN, PXE |
|
Cooling Mode |
Fanless |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket |
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount |
|
Power and Working Environment |
|
|
Input |
100-240V AC/50-60Hz |
|
Output |
12V~+19V, recommend 12V/5A |
|
Operating Temperature |
-20°C/+60°C |
|
Storage Temperature |
-30°C/+70°C |
|
Relative Humidity |
10%~90% @30°C(non-condensing) |
