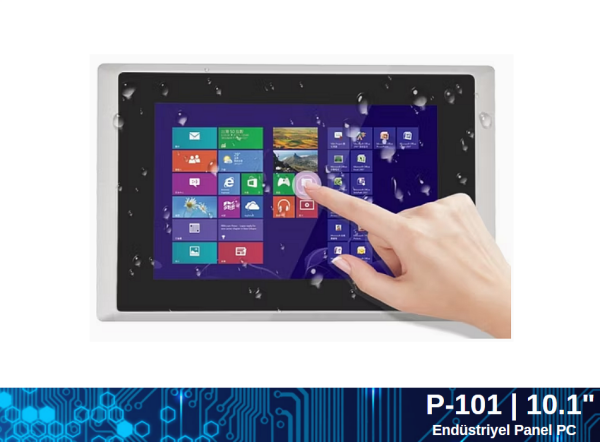

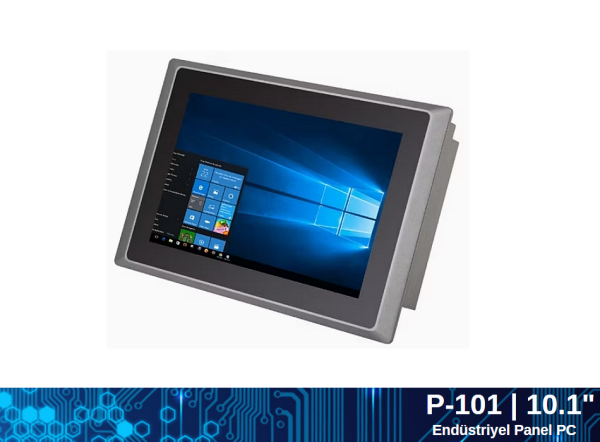

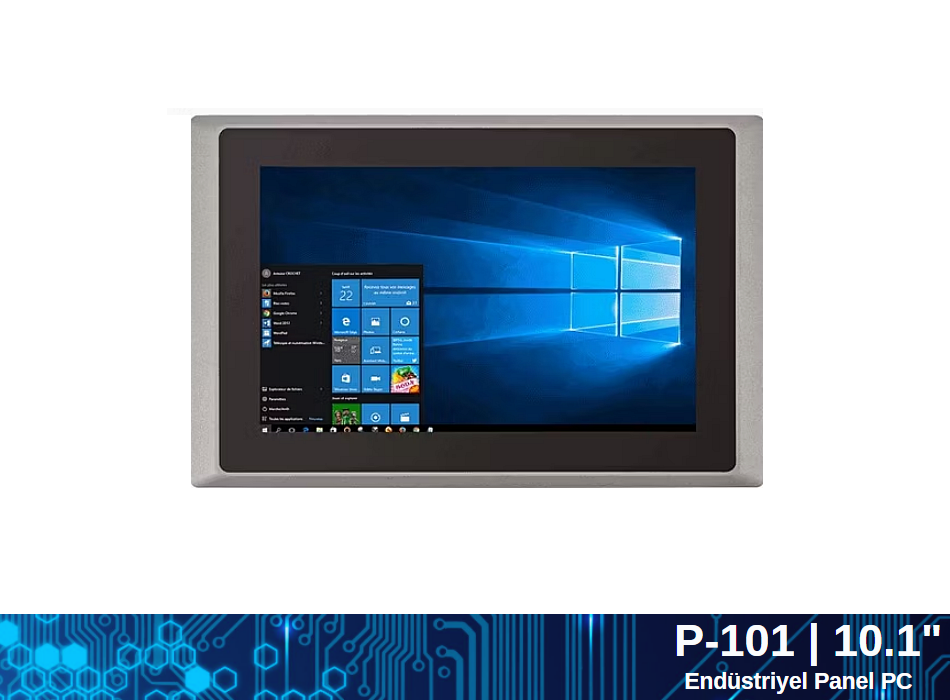

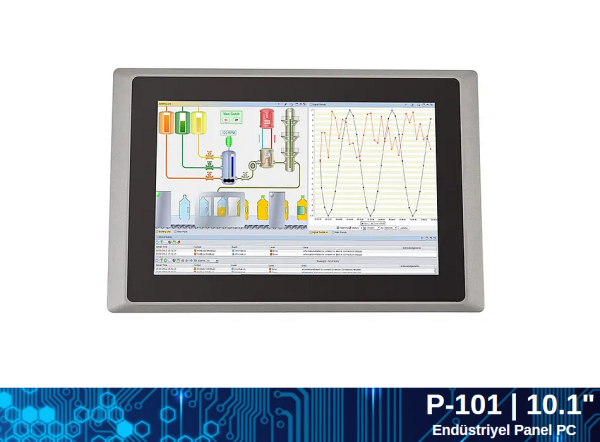

Maxwera P-101 Panel Pc | 10.1'' Celeron J4125 8GB 256GB SSD FreeDOS
MAXWERA P-101 | 10.1"
Endüstriyel Panel Pc
Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz
8GB DDR4L 2666 Mhz Ram
256GB M.2 SSD
10.1'' TFT LCD, CAPACITIVE touch
1*HDMI, 2*COM
4*USB3.0, 2*USB2.0
2*GLAN, 2 x 2.5 GbE RJ45 Intel® i225V
Wi-Fi/Bluetooth
FreeDOS
|
Ürün Özellikleri |
||
|
System |
CPU |
Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz |
|
Memory |
1*DDR4 SODIMM |
|
|
Storage |
1*M.2 2242/2260/2280 SATA / 1*2.5'' SATA / 1*M.2 2280 NVME |
|
|
Network |
2*2.5 GbE RJ45 Intel® i225V (4*2.5GbE RJ45 Intel i225V) |
|
|
Operation System |
Win 10/11, WES 10, LINUX |
|
|

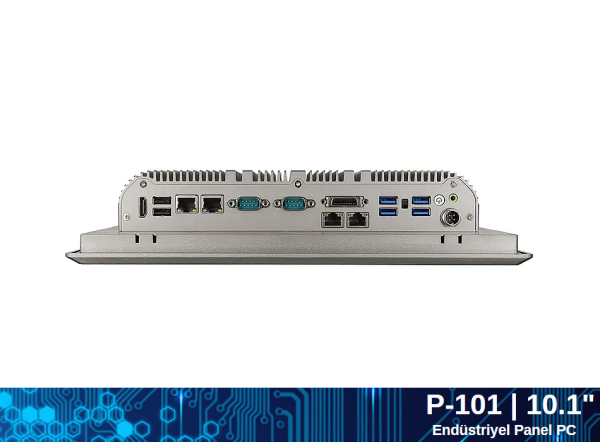

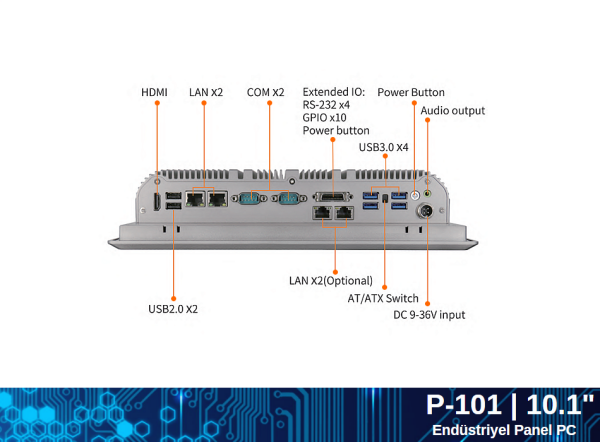

I / O |
HDMI |
1*HDMI |
|
LAN |
2*LAN (4*LAN optional) |
|
|
USB |
4*USB 2.0, 2*USB 3.0 |
|
|
COM |
2*RS232/422/485 |
|
|
Others |
1*Expansion IO: 4*3 wire COM, 1*GPIO, 1*remote switch interface |
|
|
1*Audio line-out |
||
|
2*8Ω 1W Speak out(optional) |
||
|
1*AT/ATX Switch |
||
|
1*Power On/Off Switch |
||
|
Wi-Fi |
Module |
1*M.2 2230 slot for Wi-Fi & Bluetooth module |
|
1*M.2 3042/3052 slot for 3G/4G/5G/Wi-Fi module |
||
|
Antenna |
2*inner RF cables without external antennas |
|
|
SIM |
1 x embedded SIM card slot onboard |
|
|
LCD Panel |
Panel Size |
10.1" LED |
|
Resolution |
1280x800 |
|
|
Aspect Ratio |
16:10 |
|
|
Display Brightness |
400 cd/m2 |
|
|
Viewing Angle(CR>=10) |
-85~85° (H), -85~85° (V) |
|
|
Backlight Lifetime |
30000 Hr (min.) |
|
|
Touch screen |
Type |
Multi-points Projected Capacitive Touch |
|
Transmittance |
78% |
|
|
Response Time |
<5ms |
|
|
Lifetime |
250g cliks 10 million times |
|
|

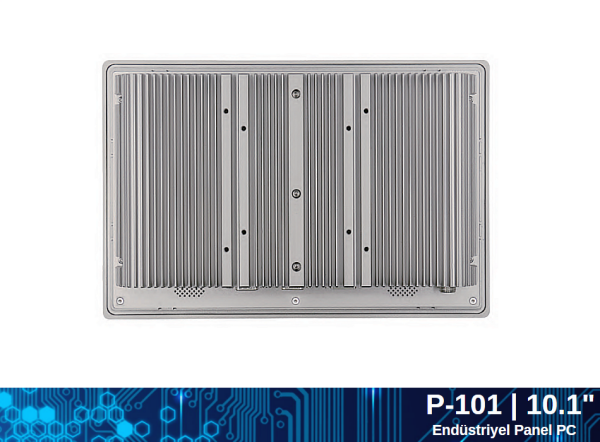

Physical |
Material |
Aluminium Alloy, Front IP65 |
|
Mounting |
VESA: 75*75mm, 100*100mm |
|
|
Product Dimension |
289.53x192.40x68.0 mm |
|
|
Cut-out Size |
275 x 178 mm |
|
|
Power and Environment |
Operating Temperature |
-20°C ~ 60°C |
|
Storage Temperature |
-30°C ~ 70°C |
|
|
Relative Humidity |
10~90% @30°C, non-condensing |
|
|
Input |
DC IN 9V~36V |
|
Ürün Boyutları:
