ALAD-A1810T Intel Celeron J6412 4GB 120GB SSD Freedos 18.5'' All In One Endüstriyel Panel PC
65.435,10 TL
Kategori
Marka
Stok Kodu
ALAD-A1810T(P)/S001
Garanti Süresi
24 Ay
Fiyat
1.250,00 USD + KDV
* 65.435,10 TL den başlayan taksitlerle!
Temel Özellikler:
- Aluminum die–casting chassis

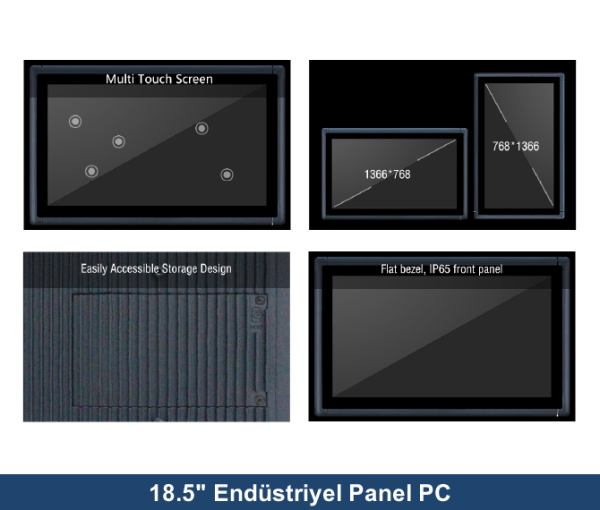

- 18.5'' Full HD LCD, Multi-point capacitive touch
- Intel® Elkhart lake Soc CPU, fanless design
- 1*DDR4 3200 SODIMM, up to 32GB
- 1*Mini PCIe, 1*M.2 B-Key Type 3042/3052
- 4*COM, 2*LAN, 4*USB3.1, 1*8-bit DIO (opt.)
- 2.5”SATA Bay, 1*mSATA, 1*Line out, 2*3W Speaker
- DC 9~36V power input
- Standard VESA mount and panel mounting
| System | CPU | Intel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4-core 4-thread or Celeron N6210 1.2-2.6GHz dual-core dual-thread |
| Chipset | Intel® CPU SoC MCP | |
| System memory | 1*DDR4 3200 MHz SODIMM, up to 32GB | |
| BIOS | AMI EFI BIOS, 128Mbit SPI flash memory | |
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD; 1*mSATA | |
| Display | 18.5 "1366*768@60Hz TFT LCD, 1*HDMI for extended display Intel UHD Graphics or iRIS® Xᵉ Graphics, Supports Intel DL boost deep learning to strengthen technology, DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI Max resolution 4096*2304@60Hz |
|
| Expansion | 1*Mini PCIe (PCIe&USB signal), supports a functional module with PCIe or USB signals 1*M.2 B-Key Type 3042/3052 with SIM card slot, supports 4G LTE/5G NR |
|
| Audio | Realtek ALC897 controller, support 5.1 channel, 2*3W Speaker | |

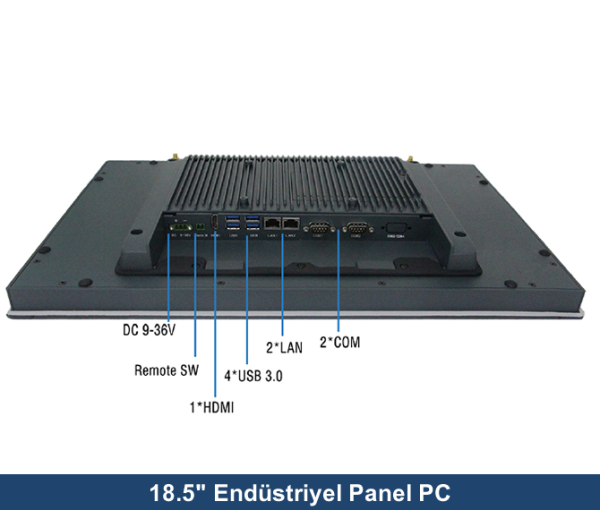

| Real I/O | 4*COM: 2*RS232/422/485, 2*RS232, DB9; 1*HDMI; 1*Line out; 4*USB3.1 Type A ; 2*RJ45; 1*3 pin DC-IN terminal pin; 1*Remote SW |
|
| Front I/O | / | |
| LAN | 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps, support WOL | |
| Control SW/LED | Power LED, 1*CMOS, 1*AT/ATX, 2-pin terminal remote switch | |
| Power Supply | DC to DC: 9~36V input, consumption: 26.4W (Celeron J6412 , 8G DDR4, 128G SSD) | |
| OS | Windows 11*IoT enterprise， Windows 10*IoT enterprise，Android，SUSE，Ubuntu， Wind River，Red Hat*Enterprise，Wind River VxWorks*7，Yocto |
|
| Construction | Aluminum die–casting front bezel , fin–shaped radiator shell | |
| Mechanical & Environmenal |
Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow |
| Storage Temperature | –20~60℃ | |
| Storage Humidty | 10~95%@40 , non–condensing | |
| Shock | 10G peak acceleration(duration 11ms), in operating with HDD | |
| Vibration | 1G 5~500Hz, in operating with HDD | |
| Mounting | Panel mounting, VESA 75*75mm and 100*100mm | |
| Dimension | (W*H*D):482.3*304.3*59.1mm; mounting cut out(W*H): 473.5*295.5mm | |
| Net Weight | 6.3KG | |
| EMC | CE,FCC Class A | |
| LCD | Type | 18.5'' TFT LED backlight |
| Resolution | 1366*768@60Hz | |
| Color | 16.2M | |
| Pixel Pitch(mm) | 0.300*0.300(mm) | |
| Brightness(cd/m2) | 350 | |
| Viewing Angle | 85°(left), 85°(right), 80°(up),80°(down) | |
| Operating Temperature | 0~60℃ | |
| Backlight Lifetime | 50000 Hours | |
| Touch | Type | Projected capacitive touch |
| Resolution | gapless | |
| Light Transmittance | 90% | |
| Interface | USB | |
| Consumption | +5V @300mA | |
| OS | Windows/Linux | |
| Click Lifetime | 3 billion times |
