ALAD-A1511T Intel Celeron J6412 4GB 120GB SSD Freedos 15'' All In One Endüstriyel Panel PC
55.488,96 TL
Kategori
Marka
Stok Kodu
ALAD-A1511T/S001-G
Garanti Süresi
24 Ay
Fiyat
1.060,00 USD + KDV
* 55.488,96 TL den başlayan taksitlerle!
Temel Özellikler
- Aluminum die–casting chassis
- 15'' TFT LCD, Multi-point capacitive/5 wire resistive touch
- Intel® Elkhart lake Soc CPU, fanless design
- 1*DDR4 3200 SODIMM, up to 32GB
- 1*Mini PCIe, 1*M.2 B-Key Type 3042/3052
- 4*COM, 2*LAN, 4*USB3.1,1*USB2.0,1*8-bit DIO (opt.)
- 2.5”SATA Bay, 1*mSATA, 1*Line out, 2*3W Speaker
- DC 9~36V power input
- Standard VESA mount and panel mounting
| System | CPU | Intel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4-core 4-thread or Celeron N6210 1.2-2.6GHz dual-core dual-thread |
|
| Chipset | Intel® CPU SoC MCP | ||
| System memory | 1*DDR4 3200 MHz SODIMM, up to 32GB | ||
| BIOS | AMI EFI BIOS, 128Mbit SPI flash memory | ||
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD; 1*mSATA | ||
| Display | 15 "1024*768@60Hz TFT LCD, 1*HDMI for extended display Intel UHD Graphics or iRIS® Xᵉ Graphics, Supports Intel DL boost deep learning to strengthen technology, DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI Max resolution 4096*2304@60Hz |
||
| Expansion | 1*Mini PCIe (PCIe&USB signal), supports a functional module with PCIe or USB signals 1*M.2 B-Key Type 3042/3052 with SIM card slot, supports 4G LTE/5G NR |
||
| Audio | Realtek ALC897 controller, support 5.1 channel, 2*3W Speaker | ||

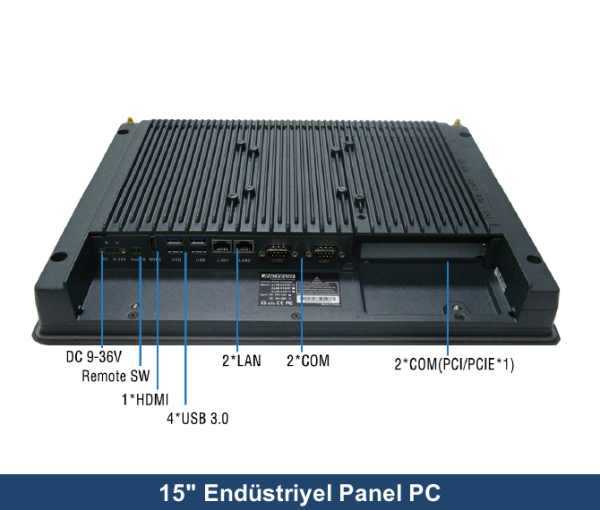

| Real I/O | 4*COM: 2*RS232/422/485, 2*RS232, DB9; 1*HDMI; 1*Line out; 4*USB3.1 Type A ; 2*RJ45; 1*3 pin DC-IN terminal pin; 1*Remote SW |
||
| Front I/O | 1*USB2.0 | ||
| LAN | 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps, support WOL | ||
| Control SW/LED | Power LED, 1*CMOS, 1*AT/ATX, 2-pin terminal remote switch | ||
| Power Supply | DC to DC: 9~36V input, consumption: 26.4W (Celeron J6412 , 8G DDR4, 128G SSD) | ||
| OS | Windows 11*IoT enterprise， Windows 10*IoT enterprise，Android，SUSE，Ubuntu， Wind River，Red Hat*Enterprise，Wind River VxWorks*7，Yocto |
||
| Construction | Aluminum die–casting front bezel , fin–shaped radiator shell | ||
| Mechanical & Environmenal |
Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow | |
| Storage Temperature | –20~60℃ | ||
| Storage Humidty | 10~95%@40 , non–condensing | ||
| Shock | 10G peak acceleration(duration 11ms), in operating with HDD | ||
| Vibration | 1G 5~500Hz, in operating with HDD | ||
| Mounting | Panel mounting, VESA 100*100 and 75*75mm, Rack mounting | ||
| Dimension | (W*H*D):380*315*56mm; mounting cut out(W*H): 367.3*303.3mm | ||
| Net Weight | 4.3KG | ||
| EMC | CE,FCC Class A | ||
| LCD | Type | 15'' TFT LED backlight | |
| Resolution | 1024*768@60Hz | ||
| Color | 16.2M | ||
| Pixel Pitch(mm) | 0.297 *0.297(mm) | ||
| Brightness(cd/m2) | 350 | ||
| Viewing Angle | 80°(left), 80°(right), 80°(up),80°(down) | ||
| Operating Temperature | 0~50℃ | ||
| Backlight Lifetime | 50000 Hours | ||
| Touch | Type | 5 wire resistive touch | Projected capacitive touch |
| Resolution | gapless | gapless | |
| Light Transmittance | 83% | 90% | |
| Interface | USB | USB | |
| Consumption | +5V @200mA | +5V @300mA | |
| OS | Windows/Linux | Windows/Linux | |
| Click Lifetime | 35 billion times | 3 billion times | |
