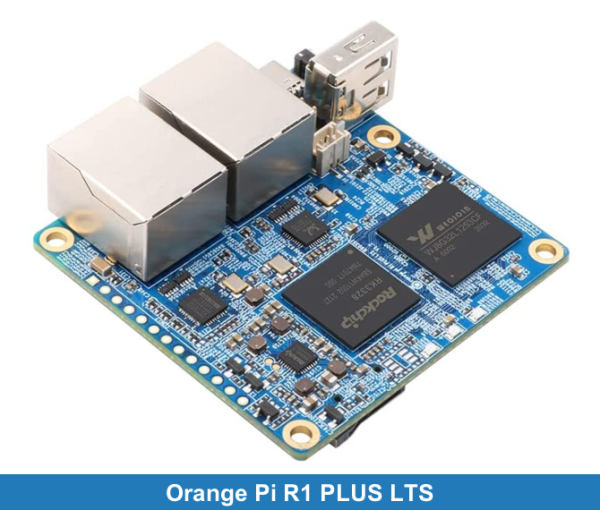

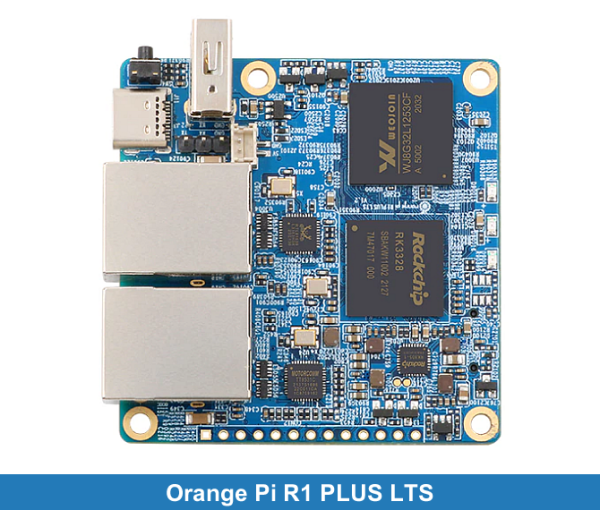

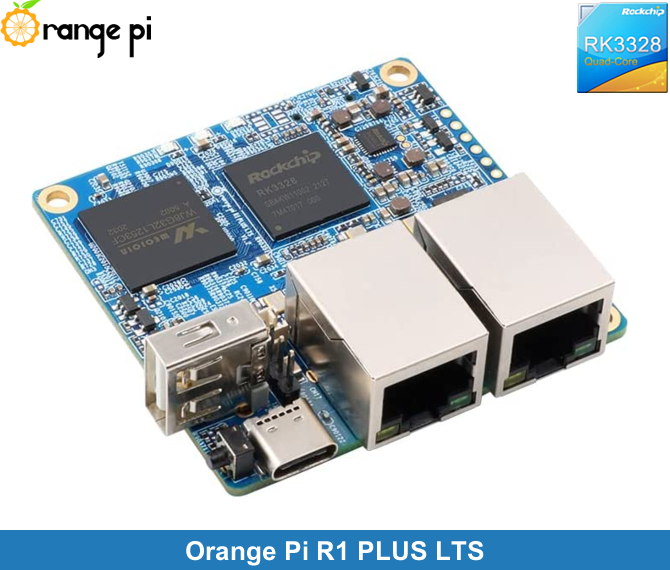

Orange Pi R1 PLUS LTS

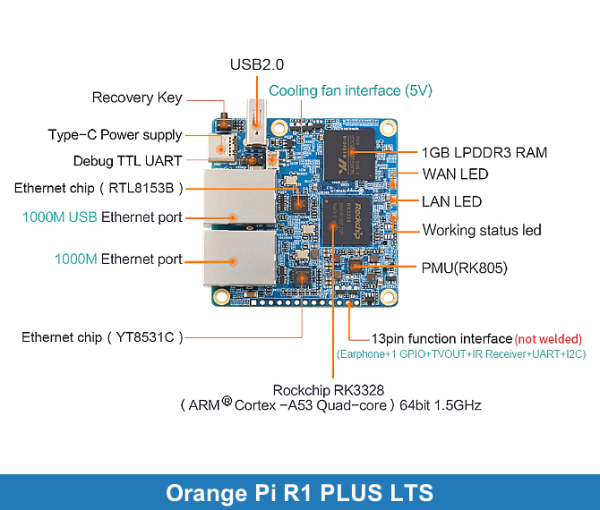

CPU

Rockchip RK3328
Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz

GPU

Mali-450MP2
Supports OpenGL ES 1.0/2.0

Power management chip

RK805

Memory(SDRAM)

1GB LPDDR3 (Not Shared With GPU)

Onboard Storage

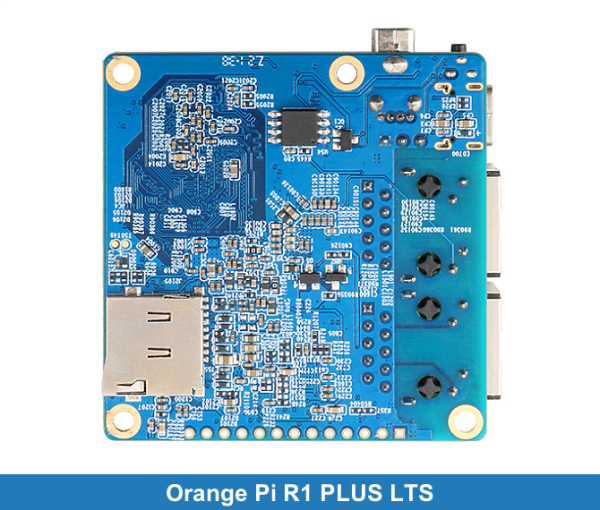

• Micro-SD Card slot
• 16MB SPI Flash

Onboard Network

10M/100M/1000M Ethernet (YT8531C)
10M/100M/1000M USB Ethernet (RTL8153B)

Video Output

TV CVBS output（Via 13pin interface board）

Audio output

3.5mm audio port（Via 13pin interface board）

Power Source

USB Type-C Interface 5V/2A Input

USB

1x USB 2.0 HOST

Low-level peripherals

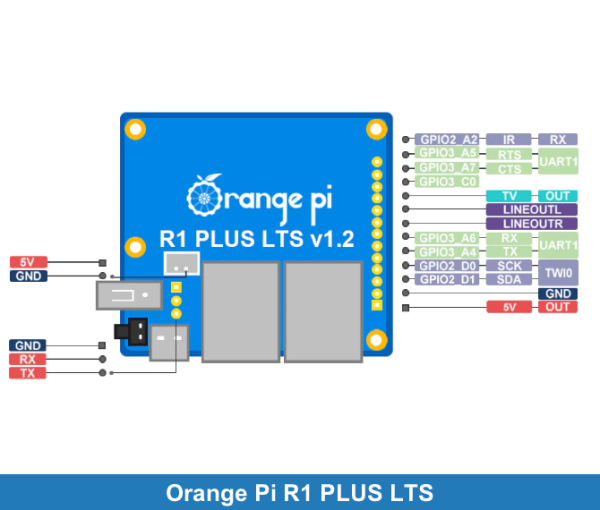

13pin header with IR pin、Tv-out、AUDIO(no MIC), 2xUSB2.0（not support）and 1 GPIO port

Note: 13Pin Headers Will Not Be Welded

Debug serial port

UART-TX、UART-RX and GND

Button

1x Reset Button

Fan interface

1x cooling fan interface (5V)

LED

Power LED & Status LED

Supported OS

Android 9、Ubuntu、Debian、OpenWRT

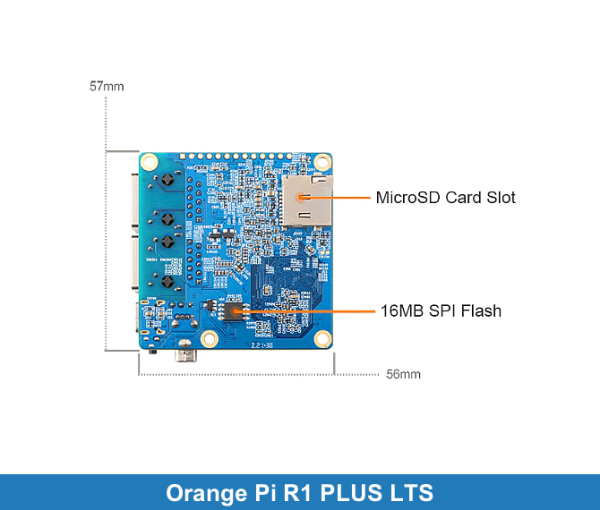

Dimension

56mm×57mm

Weight

29.5g
