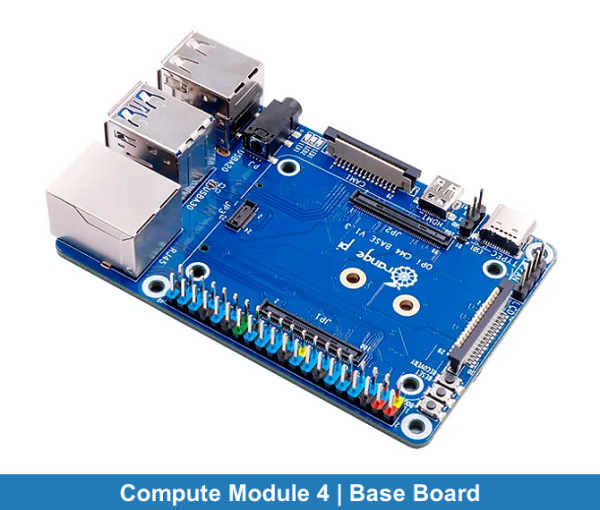

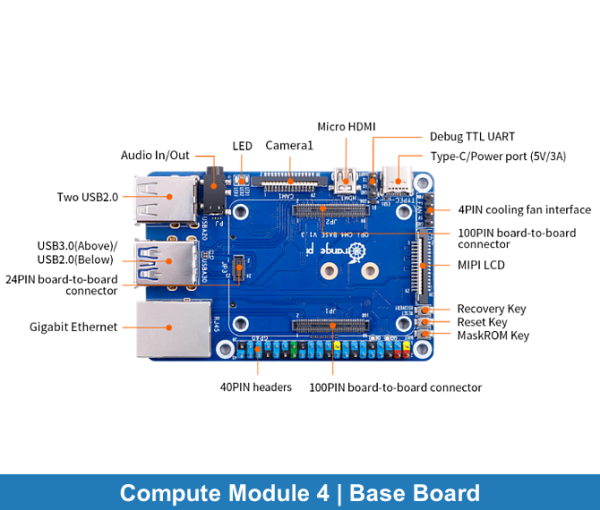

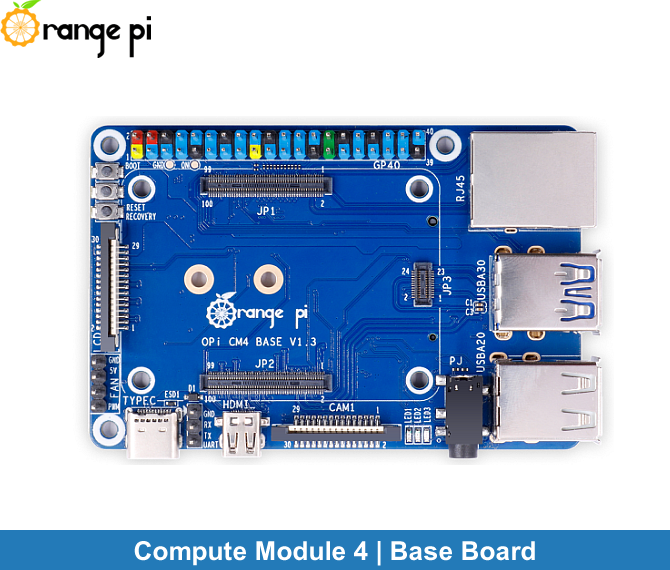

Orange Pi Compute Module 4 | Base Board

Memory

• M.2 M-KEY slot: SATA3 or PCIe2.0 NVME SSDs
• TF card slot

Ethernet interface

 10/100/1000Mbps Ethernet RJ45 socket

Video output

• 1* HDMI TX 2.0 , up to 4K@60fps
• 1*MIPI DSI 2 lane
• eDP1.3

Camera

 2*MIPI CSI 2 Lane

USB

•1*USB 2.0 support Device or HOST mode
•1*USB 3.0 HOST
•2*USB 2.0 HOST

Audio

 3.5mm headphone jack audio in/out

Button

 1*MaskROM key, 1*RECOVERY key, 1*RESET key

FAN

 4Pin 2.54mm size 5V fan connector

40Pin

 40Pin functional expansion interface, interface voltage 1.8V/3.3V optional, supports the following interface types:
 GPIO, UART, I2C, SPI, PWM

Power source

 Type-C 5V3A

Supported OS

 Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch),

 Orange Pi OS (OH) based on OpenHarmony and other operating systems.

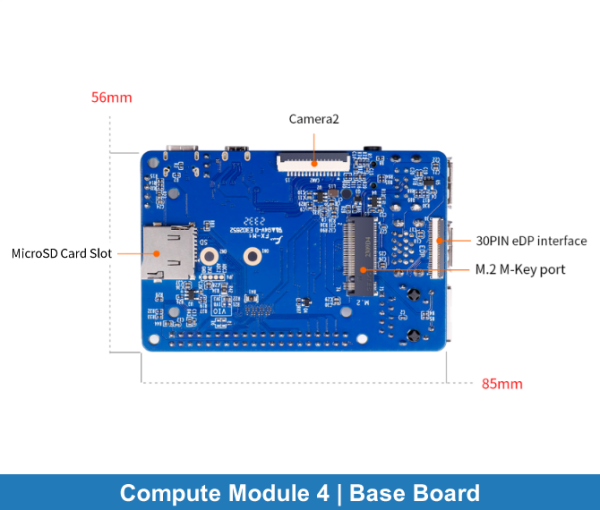

PCB dimension

 85x56mm

Weight

 46g
