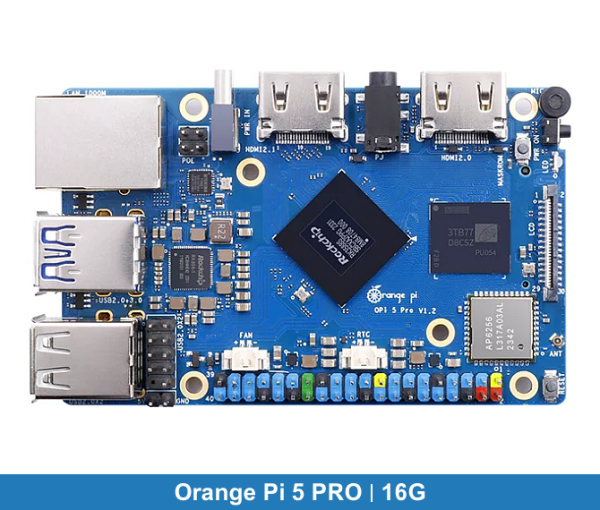

Orange Pi 5 PRO | 16GB

SOC

Master Chip

Rockchip RK3588S (8nm LP process)

CPU

• 8-core 64-bit processor
•big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GHz, and little core cluster is 1.8GHz frequency.

GPU

• Arm Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2

NPU

Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power

PMU

RK806-1

RAM

LPDDR5 496PIN：4GB/8GB/16GB (optional)

Memory

• eMMC socket: supports eMMC module (optional)
• SPI Flash (default empty)
Note:either eMMC socket or on-board SPI Flash is preferred.
• MicroSD (TF) slot
• M.2 M-KEY slot: NVMe SSD or SATA SSD

USB

USB3.1 Gen1 * 1;USB2.0 *1；
USB HUB:USB2.0 *2（TYPE A）+UAB2.0*2 row of pins

Video Output

• HDMI2.1 up to 8K @60Hz
• HDMI2.0, up to 4K @60Hz
• MIPI DSI 4 Lane, up to 4K @60Hz

Camera

2*MIPI 4 Lane

Audio

CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: onboard MIC
• HDMI 2.1 eARC

Ethernet

10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)

Wi-Fi+BT Module

Onboard Wi-Fi5+BT 5.0/BLE module: AP6256

PCIe M.2 M-KEY Socket

M.2 M-Key slot supports access to NVMe SSD or SATA SSD

Expansion Port

• Dual-row pin: 2.54mm 40Pin
• Supports DC 5V and 3.3V power outputs
• Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces

Button

1* MaskROM, 1*RESET, 1 * POWER

Power Source

Supports Type-C power supply, 5V @ 5A

LED

RGB LED tri-color indicator

FAN

5V 2PIN 1.25mm socket

RTC

3V 2PIN 1.25mm socket

Debugging

Debug serial port UART included in 40PIN expansion port

Supported OS

Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12

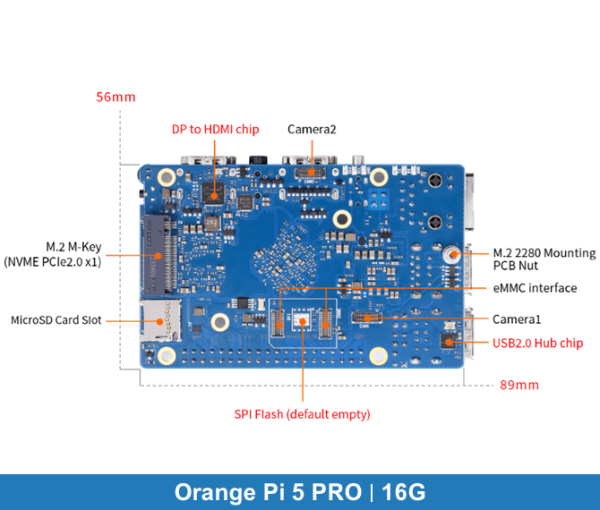

Dimension

89mm*56mm*1.6mm

Weight

62g
